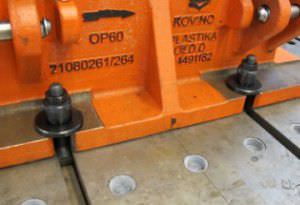

Mechanical Die Clamps

Complete clamp with high clamping force and long stroke.
Quick clamping (1 rev = 5 mm stroke).
Variable stroke adjustment (0-50 mm stroke).
Self-locking.
Vibration tested.
Gentle on staff, no big lever needed.
MC4-10 consists of:

Sleeve with nut for ratchet.
Inner right-hand thread for the bolt.
Left-hand thread for the clamping flange.
Clamping flange with outer left-hand thread.
Bolt with outer right-hand thread.
Sliding key for the clamping flange.

Parameter Name	Parameter Value
Type	mechanical
Applications	press tool
Clamping force	Max.: 100 kNMin.: 40 kN
