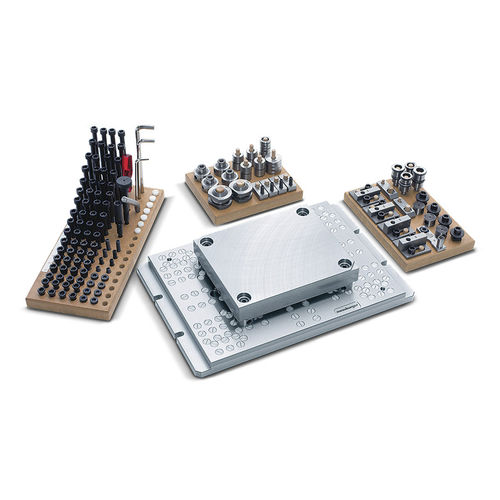

With the H 1000 you will not only work quickly and efficiently but also with absolute precision and repeatability. The standard F parts are aligned and clamped where it matters for the mould function, i.e. in the guide holes.

With the H 1000 you will not only work quickly and efficiently but also with absolute precision and repeatability. The standard F parts are aligned and clamped where it matters for the mould function, i.e. in the guide holes.

YOU TOO CAN PROFIT FROM THE MANY BENEFITS OF THE H 1000.
Improve the quality of your moulds by precise clamping in the µ-range with repeatable accuracy
Reduce your processing time by substantially reducing fitting time
Simplify programming by clamping without obstructive contours
Minimise the risk of collision by using expansion rings for clamping
Use pallets for various special clamping tasks

THE TRACK-PROVEN H 1000 CLAMPING DEVICE HAS BEEN SUPPLEMENTED BY A SYSTEM FOR CLAMPING NF INSERTS.

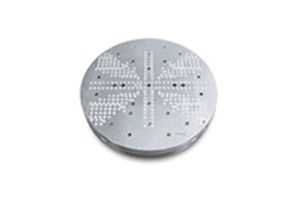

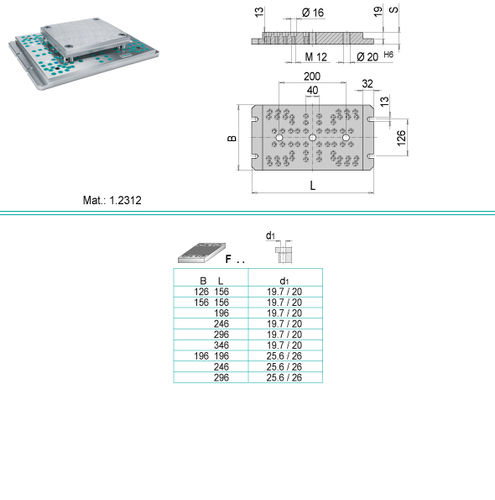

Any number of clamping supports with centring can be fixed into the bores of the H 1000 base plate. In the NF insert the clamping spigots are fitted into integrated fitting diameters with a thread. Clamping spigots with an undersized fitting diameter are available for machining before hardening. Now the insert is simply placed onto the clamping support and tightened with locking sleeves. Five sides of the part remain free from interfering contours. The distance from the base plate can be increased in 40 mm steps in combination with H 1030 centring support extensions. As the clamping supports clamp centrally, repeatability in the µ range is guaranteed.

Parameter Name	Parameter Value
Type	mechanical
Applications	machining for injection molds
Other characteristics	fixed
