New, incredibly fast and individual application: FlexiClamp. Build your own FlexiClamp clamping system only with the parts you need for your application.

Advantages of clamping bolts:

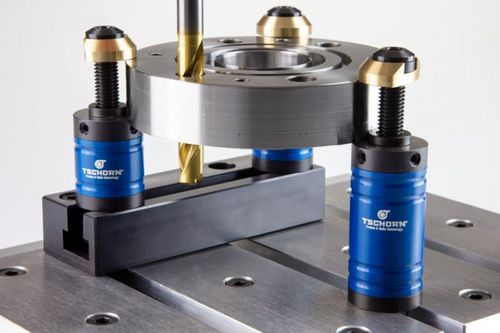

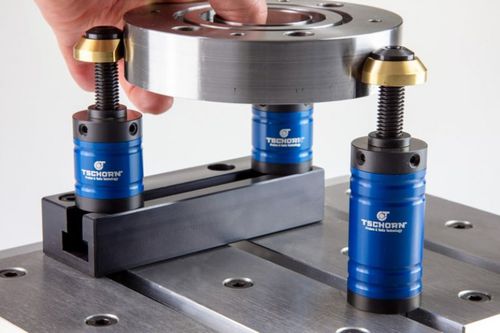

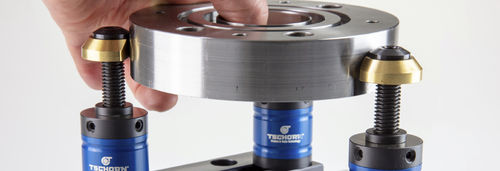

Quick setting that's what characterizes our clamping bolts:move each single bolt without clamping screw into the slide block of the machine table and position the bolt by hand as a stopper at the workpiece. Tighten the clamping bolt and it automatically helps you to position the workpiece.
Flexible for diverse workpiece shapes: no matter if round, oval, quadratical or even pentagonal - with the help of the clamping bolts, you can clamp all forms.
Safely fixed: the clamping screws are added from above. They clamp the workpiece powerfully and securely. A soft exchangeable brass ring avoids damages or scratches at the workpiece.
Drill-through: here is not much disturbing space under the workpiece - no clamping jaws, no base, nothing is disturbing when you drill-through your workpiece with diverse divisions of pitch circles.
The small disturbing contour enables multi-purpose machining even at places which you normally hardly reach.

The FlexiClamp bolts are a modern combination of an aluminum body and hardened steel surfaces. The bolts are available in heights of 50 and 80 mm.The bolts are positioned and fastened using a centric screw with a hexagonal wrench while the bolt is stationary - without any undesired twisting..

Parameter Name	Parameter Value
Type	mechanical
Applications	workpiece machining
Other characteristics	steel quick flexible aluminum fixed
