Mechanical clamping fixture Cap Clamping Jig CCJ series

Mechanical clamping fixture Cap Clamping Jig CCJ series

Mechanical clamping fixture Cap Clamping Jig CCJ series

About

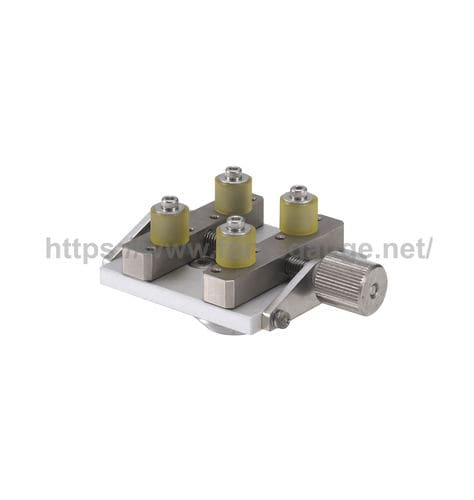

Cap Clamping Jig CCJ series is a chuck with 100N capacity for clamping samples such as caps, connectors and more.

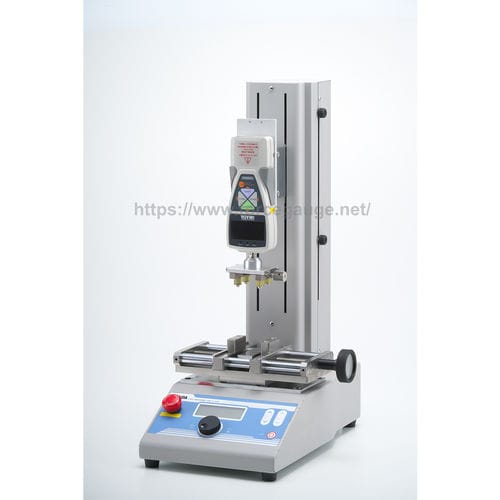

Combine it with a force gauge and test stand to complete a testing system.

Features
- Designed for gripping round-shaped samples tightly by the 4 pins
- Ideal for insertion/extraction test of round samples including caps of cosmetic package or connectors
- Standard pins type (CCJ-100N) and notch pins type (CCJ-100N-01) are available

Specifications
Capacity: 100N
Pins: Standard (CCJ-100N) Notched (CCJ-100N-01)
Clamp diameter: 7 to 50mm
Material: Urethane (CCJ-100N) Stainless Steel (CCJ-100N-01)
Weight: Approx. 240g
See our website or catalog below for further information.

Related Products
Vise Grip GT-30/2000N
It is used to grip and fix samples on a vertical test stand.
Available in capacity of 250N and 2000N.

Self-centering Vise Grip GTW-50R/50L
It is used to grip and fix samples on a vertical test stand.
This is self-centering model available in capacity of 500N and 1000N.

Jacobs Chuck GC-5/15
GC series is deal for smaller round rod-type samples, securing sample tightly with firm gripping.

With our know-how accumulated over 70 years, we are confident in offering the best force measurement solution for your needs.
Please contact us for any enquiries.
