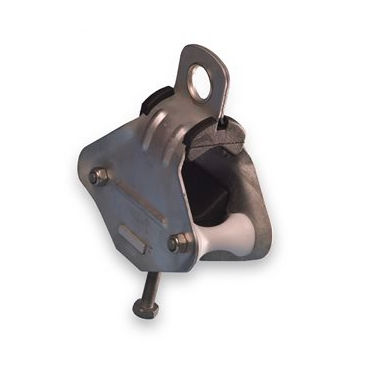

Suspension clamp
4x25-95 mm² (heavy duty with rollers)

Used for the installation and suspension of cables from poles in straight lines and angles. The body is made of hot-dip galvanized steel, and there is a stainless steel reinforced ring in the hook attachment. The integral rollers are made of plastic and inserts of weather resistant plastic. At angles exceeding 30°, the use of an additional roller set is recommended to use with the clamp.

Conductor size: - 4x25-95
Conductor diameter: - 18 ... 39 mm
Weight: - 0.8428 kg

SMFL: - 18 kN
Tightening torque: - 12 Nm

ETIM Class: - EC003516

Parameter Name	Parameter Value
Type	mechanical
Other characteristics	stainless steel
Clamping force	18 kN
