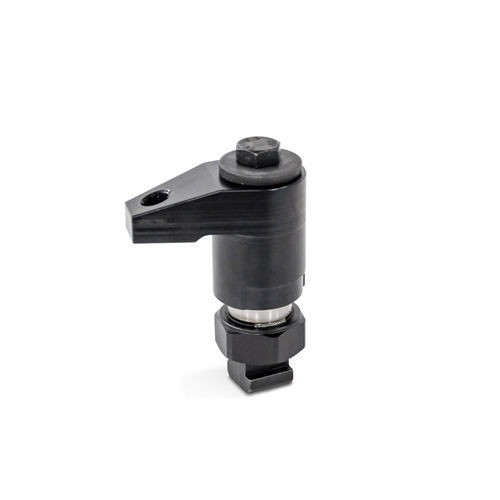

Down-thrust clamps GN 9192 are compact clamping elements for quick and secure clamping in tool and fixture construction. Rotating and tightening the clamping screw or the adjustable hand lever moves the clamping arm downwards to clamp the workpiece.

The clamping arm can be swiveled 360° by hand so that workpieces can be inserted and removed from above quickly and easily. The thread on the clamping arm d3 can be used for positioning elements and clamping pads.

Positioning ring GN 9192.2, available as an accessory, limits the swiveling range of down-thrust clamps to 110° left or right via a positioning pin. The position of the ring can be adjusted to ensure that the clamping position is reached reliably when the clamp swivels over the positioning pin.

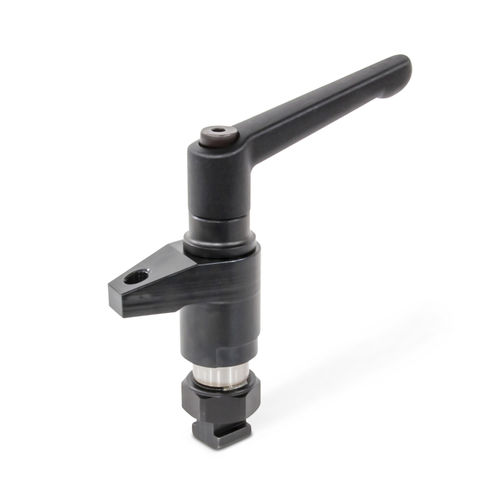

Down-thrust clamps can be screwed in directly, e.g. in a mounting plate, or fastened to machine tables with T-slots. Height cylinders GN 9192.3 can be used to increase the clamping height. The adjustable hand lever (type K) is supplied loose.

Parameter Name	Parameter Value
Type	mechanical
Applications	workpiece
Other characteristics	compact adjustable high-speed swing
Clamping force	5 kN, 10 kN
