Mechanical clamp 04431-12

Mechanical clamp 04431-12

Mechanical clamp 04431-12

About


Cam clamps, steel with tension lever

Material:
Carbon steel.

Version:
Black oxidised.

Note:

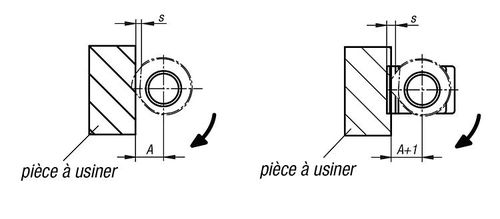

Dimension A refers to the distance from the workpiece to screw centre (cam screw).

Form B with clamp plate is recommended to minimise scratches on the workpiece.

The hexagonal key on the tension lever enables the lever to be mounted in 60° increments, thus aligning it according to the users requirements.

Advantages:
- Compact design
- Rapid and easy clamping of the component
- Tool-free clamping with tension lever

Accessory:
Clamping plate 04431-15.

Drawing reference:
(1) Clamping screw
(2) Spring washer
(3) Tension lever
(4) Hex key
(5) Cam clamp
(6) Clamping plate



PARAMETERS

Parameter Name Parameter Value
Type
  • mechanical
  • cam-operated
Applications
  • workpiece
  • machining
Other characteristics
  • black oxide-finished
  • high-speed
  • eccentric
Clamping force
0.3 kN, 0.5 kN, 0.7 kN
