Description
Measuring system Siver Data can be used in the following cases:

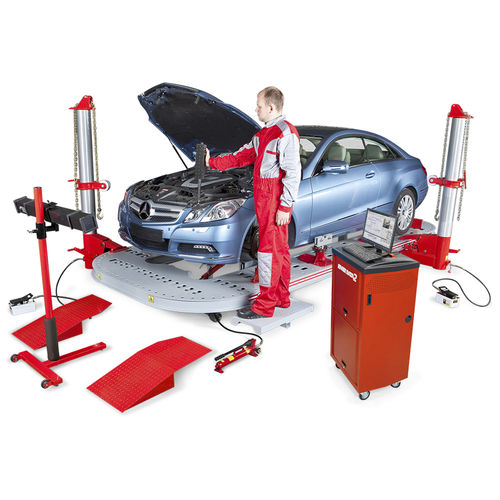

For measurements during the process of collision repair.
When it’s impossible to detect visually the condition of the car body and it needs an documental approval.

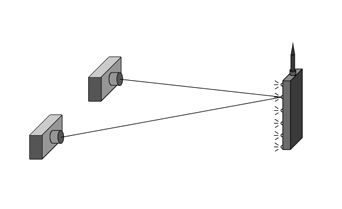

The measuring system provides noncontact multidimensional measuring by fixing pointer’s position and further 3D modeling. Siver Data incorporates the principle of binocular vision: like a human eye, when we need to determine distance to the object. Two cameras located at the ends of the measuring beam perform “eyes function”. As soon as contrast object (LED lights located in special order on the target) appears into the field of view of two cameras, the system accurately computes 3D coordinates.
SIVER DATA performs point-to-point measurements quickly and accurately. The system provides 1 mm accuracy of measurements.

The Siver Data measuring system has a Pattern Approval Certificate of Measuring Instruments which confirms the measurement accuracy and allows the measuring system users to submit the data on the car body condition both to customers and insurance companies.

A measuring unit is a rigid metal beam incorporating two video cameras. The beam consists of two members: an outer protective casing and articulated precision rod with cameras. Such a structure reduces the risk of deformation of critical assemblies and enhances the operational robustness.

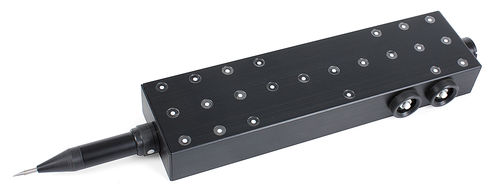

Pointer contents 23 LED lights. Pointer works from built in AA batteries.
Control commands are communicated to the computer optically via a wireless link.

Parameter Name	Parameter Value
Technology	multi-camera 3D
Operational mode	automatic
Applications	for the automotive industry
Type	video measurement
Other characteristics	LED wireless
