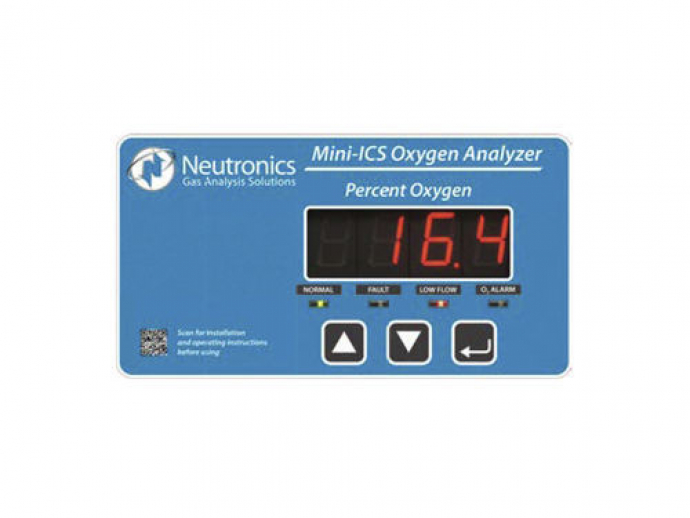

Compact Series Percent Oxygen Analyzer/Controller

The Mini-ICS (Inert Gas Control System) is a compact series analyzer designed for continuous real-time oxygen monitoring and concentration control of nitrogen or inert gas

Compact design for continuous real-time monitoring and control
User-adjustable alarm and inert gas control with relay outputs
Low ­ow indicator for process gas sampling applications
Remote calibration relay output for “one man” calibration
Two analog outputs – 4-20mA and 0-1, 0-5, or 0-10VDC

The Mini-ICS (Inert Gas Control System) is a compact series analyzer designed for continuous real-time oxygen monitoring and concentration control of nitrogen or inert gas. When combined with a properly designed sample conditioning package, the Mini-ICS provides reliable measurement of oxygen levels over a wide range of conditions and automatically maintains oxygen levels within specified limits through precise control of the ­ow of inert gas into the process.

Inert gas blanketing protects plant personnel, products, and plant assets by reducing the oxygen content in the vapor space of a tank or process vessel. Making the vapor space inert eliminates the possibility of ‑re or explosion, decreases evaporation, and protects the vessel from structural corrosion damage. Tank blanketing also prevents air, moisture, or other contaminants from entering the vapor space and causing product quality degradation.

Measuring Range: - 0-1, 0-10, 0-25, 0-50% oxygen. Fixed or auto
Accuracy: - ±2.0% of full scale
Enclosure Rating: - Faceplate: NEMA 4 (IP66)Chasis: Nema 1, IP20
Response Time: - T90 < 20 sec

Parameter Name	Parameter Value
Function	monitoring process measurement oxygen
Product applications	oxygen nitrogen
