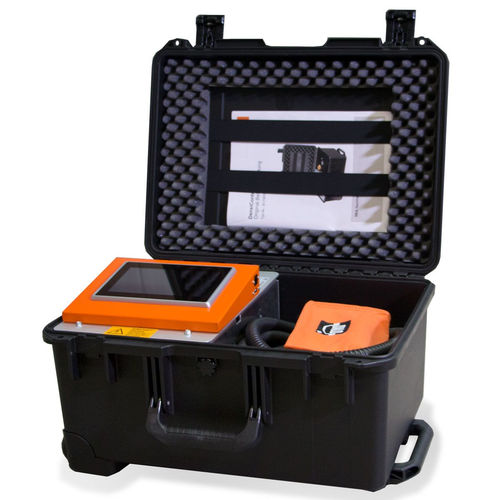

The (EU) F-gas regulation 517/2014 stipulates regular verifi cation of density monitors installed in switchgear. In combination with a DILO lock valve it is possible to quickly check whether the density monitor switching points are triggered in time without disassembling the density monitor. Thus, the DensiControl IN allows very quick, easy and precise verification of the switching points without SF6 emission.
The density controller to be verified is selected in the database and is separated from the gas compartment with the lock valve. After starting the measurement the gas in the density monitor is slowly released and collected in the internal storage vessel. During that procedure, the switching points are activated and recorded automatically. Furthermore, the switching points can be stored in the system with serial number and switchgear temperature and downloaded for documentation later on. After the measurement, the collected gas is pumped back into the switchgear.

Advantages & functions
• Automatic test process
• Test of density monitor without disassembly and without SF6 emission (assembly of density monitor on lock valve is necessary)
• Easy handling and menu navigation via colour touch panel (7“)
• Storage of 50 density monitor types with their corresponding switching points
• Storage of up to 200 measuring results
• Data transmission to USB stick and data output as a test report
• Indicating pressure units can be selected
• Adjustable user languages: German, English and French
• Trolley for comfortable transportation
• Pressure indication in bar pa / pe, kPa pa / pe, psi pa / pe, MPa pa / pe

Parameter Name	Parameter Value
Function	measurement temperature
Type/technology	digital
Product applications	for push-buttons and signal lamps
Other characteristics	automatic high-performance
