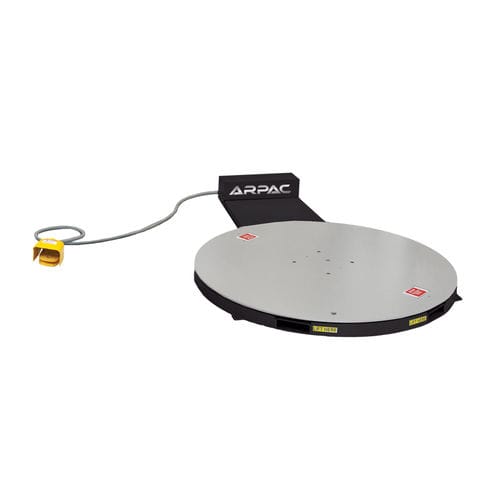

Low Profile Manually Operated Motorized Turntable

The ARPAC SPINNER is a robust turntable designed, manufactured and supported to offer trouble free operation. This system is availabale in high profile and low profile.

Mode of Operation
The fork truck places the pallet load onto the turntable of the ARPAC SPINNER TURNTABLE The machine operator attaches the film to the pallet and starts the wrapping cycle by depressing the foot pedal and feeding the film via a hand held film dispenser .When the wrapping is complete, the operator stops the turntable by releasing pressure on the foot pedal, tears the film and attaches the tail to the wrapped pallet.

The pallet can now be removed from the turntable.

Features

Heavy-duty, welded steel construction (no plastic panels) designed for long life
Environmentally friendly Powder Coated paint
Wraps loads up to 4000 lbs on 60 in. round "Low Profile" turntable for pallet lifter / fork truck access
12 RPM turntable can deliver up to 40 loads per hour
Turntable direct drive ½ HP, 90VDC, with ANSI 50 chain
Eight point caster support for 60" turntable
UL approved components
Forklift portable
"Soft Start" Foot Pedal Controlled
Hand held film dispenser (not supplied)
Infinite wrap pattern freedom
Guarding and Finish
No exposed chains, sprockets or machine drive mechanisms.
The Powder Coated paint system is standard on all Arpac Stretch equipment.

Parameter Name	Parameter Value
Operation	manual
Other characteristics	rotating
