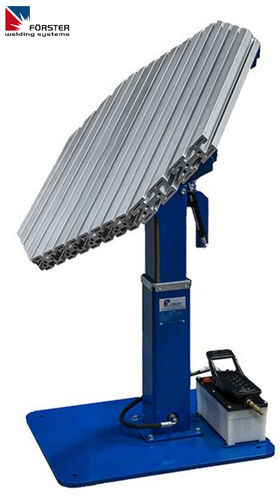

The all-round talent - tiltable, rotatable and height-adjustable table for ergonomic working.

This means assembly, machining or welding in an ergonomically favorable position for the best possible access to the component.


Versions selectable with aluminum X-PRO profiles, aluminum double groove profiles, our heavy-duty rails made of weld-spatter-protected special gray cast iron (GG) or non-ferritic rails (Al/Cu) are particularly suitable for welding due to flexible positioning of the seam position.

All designs are compatible with our extensive range of clamping and stop elements.

Match the position of the clamped component to your position, not your position to the position of the component.

Your advantages

Hydraulic height adjustment (electromotive or with foot pump)
tiltable up to 45° ( manual or electro-hydraulic)
manually 360° rotatable (locking with clamping lever)
table surface height 690 - 990 mm
payload: 50 kg to 150 kg
Optional rotation brake or hydraulic damping of the tilting technology (recommended for workpieces from 100 kg)

Highest quality, Made in Germany!

Parameter Name	Parameter Value
Operation	manual
Configuration	horizontal tilting
Applications	for machining centers for machining for welding
Other characteristics	compact rotating small universal
