Properties and application:

For milling curved surfaces in rotary milling
For milling flat surfaces at a right angle to the fixed base
For drilling and milling with angular division
For fixing on the level of the tailstock, angular division allows to machine details with complicated shapes
Workpiece is mounted in the chuck placed on the table or directly on the rotary table
The worm gear ratio is 1:90
High rigidity

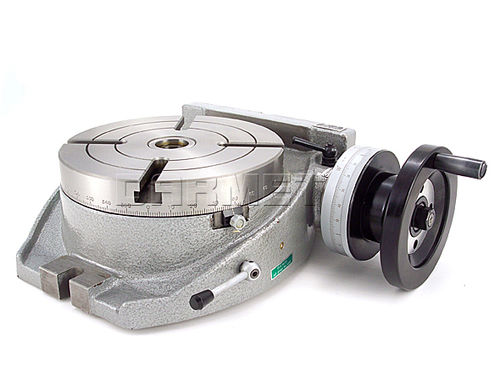

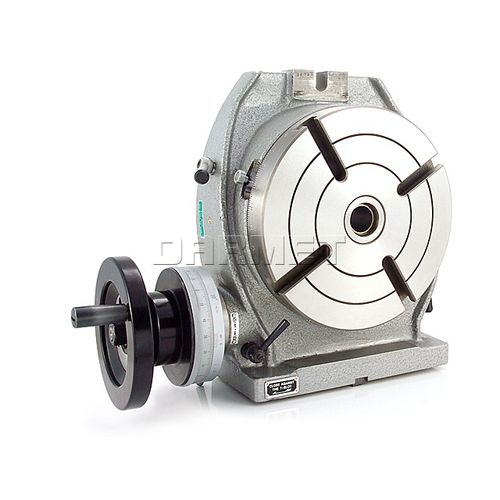

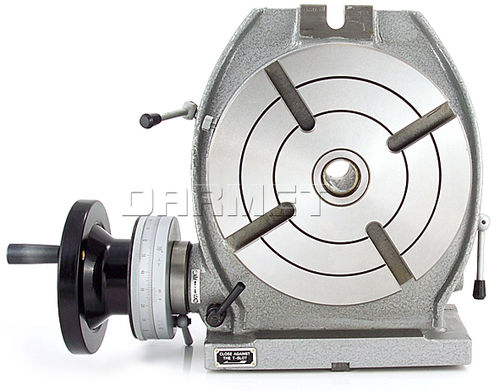

Vertical and horizontal working positions
Possibility of a full 360° rotation, one turn of the crank rotates the table by 4°
Centering Morse taper sleeves are hardened and ground

Parameter Name	Parameter Value
Operation	manual
Configuration	horizontal vertical
Applications	for milling
Other characteristics	worm gear
Diameter (mm)	160 - 400
