Velmex Rotating Tables deliver precise, continuous rotating motion for scanning, assembly, testing and production. They are a convenient, accurate method of quickly positioning or rotating a payload. The tables are offered in two configurations – Rotary Tables and Turntables.

The Rotary Tables use a rugged worm and gear drive design with a central rotating ball bearing to turn the payload. They are available either manual or motorized. The larger Rotary Table can support payloads up to 200 lbs. (90.7 kg) and the smaller can handle payloads up to 50 lbs. (22.6 kg.)

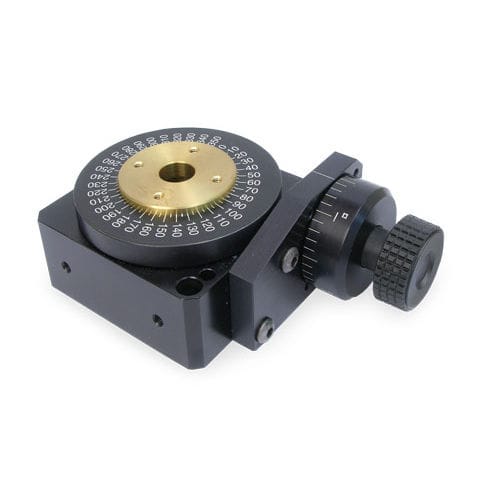

A59 Series – One model with a 90:1 gear ratio. The smaller A5900 can handle 50 lbs. (22.6 kg.) horizontally and 5 lbs. (2.3 kg.) vertically. The series features a hollow spindle or clear aperture in the center and comes in a standard black anodized finish.

Both the A48 and A59 Series feature a graduated knob.

Parameter Name	Parameter Value
Operation	manual
Configuration	vertical
Other characteristics	rotating high-precision for heavy loads small with ball bearing
Diameter (mm)	42 - 42
