Velmex Rotating Tables deliver precise, continuous rotating motion for scanning, assembly, testing and production. They are a convenient, accurate method of quickly positioning or rotating a payload. The tables are offered in two configurations – Rotary Tables and Turntables.

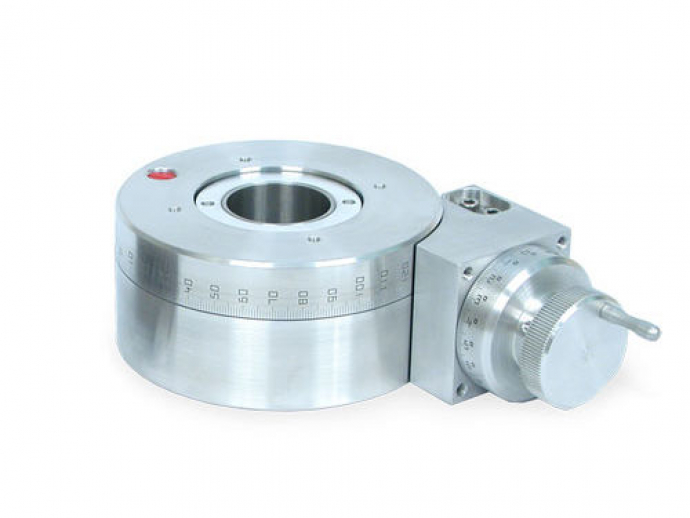

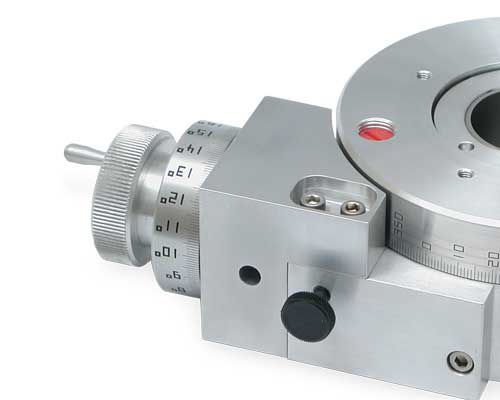

The Rotary Tables use a rugged worm and gear drive design with a central rotating ball bearing to turn the payload. They are available either manual or motorized. The larger Rotary Table can support payloads up to 200 lbs. (90.7 kg) and the smaller can handle payloads up to 50 lbs. (22.6 kg.)

A48 Series – Three models with gear ratios of 18:1, 36:1 and 72:1. The B4800 Series has a load capacity up to 200 lbs. (90.7 kg.) horizontally and 25 lbs. (11.3 kg.) vertically. (The payload it can support vertically depends on the gear ratio. The lower the ratio, the less weight it can support.)

Revolution time at 600 rpm ranges from 1.8 to 7.2 seconds, respectively. The series features a hollow spindle or clear aperture in the center. Aluminum finish is standard.

Parameter Name	Parameter Value
Operation	manual
Configuration	vertical
Applications	for machine tools
Other characteristics	rotating high-precision with ball bearing
Diameter (mm)	127 - 127
