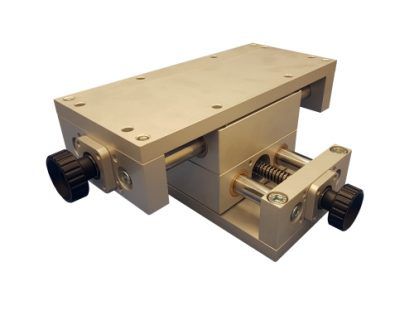

Manual positioning table drived by lead screw
Guided by 2 rods on bronze bearings or ball bushings

Options :
Handwheel or grip knob
Positioning indicator
Position clamping
Assembly in manual XY positioning table

Precision manual tables
The guidance is ensured by 2 rods on 4 calibrated bronze bearings (reduced play) or 4 ball bushings for guidance without play. The guide length of long body tables (309L/M) allows to accept large loads and torques.

The axial positioning accuracy of these tables is <0.15 mm (in practice 0.02 to 0.10 mm). But the blocking in position is done on the carriage, by pressure on a guide rod, so as to remove the axial play of the nut of the trapezoidal screw after blocking.

Manual crossed tables XY or YZ
For the creation of XY crossed table, the tables are mounted one on the other directly by the body (long body version only) with the option 308922 * making smooth holes in the body of a table.

To combine 2 tables in YZ, it is preferable to use a lifting table for the Z axis, mounted by its end on the body of the horizontal table.

Handwheel, indicator and maxi stroke of manual tables
The shaft outlet is threaded to directly screw the handwheel or the grip knob with or without position indicator.
Consider the reverse display of the indicators when the table is mounted vertically.

The maxi achievable stroke is 750 mm, and any intermediate stroke can be produced.

Other manual tables
This range is completed by the lifting tables which are fixed by 1 end, and the tables with reversed step (the 2 bodies approach or move away symmetrically) and for simple applications, we recommend economical tables.

Parameter Name	Parameter Value
Orientation	linear
Type	manual
Number of axes	1-axis
Other characteristics	precision reversed-pitch trapezoidal screw
Stroke (mm)	0 - 400
Load (kg)	2 - 50
