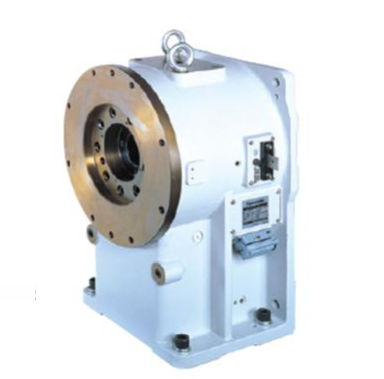

Panasonic's series of Tilt-Rotate Positioners are capable of handling payloads up to 1000kg.
Operating Range Rotation - -3600°+3600° (with multi-rotation data reset function)
Allowable Torque - 196N · m
Allowable Moment Rotation - 1470N · m
Position Repeatability - +/-0.05mm (R=250mm)
Hollow Shaft Diameter - 55mm
Allowable Welding Current - 500 A 60% Duty Cycle
Max Speed Rotation - 120°/s (20 r/min)
Operating Range Rotation - -3600°+3600° (with multi-rotation data reset function)
Allowable Torque - 490N · m
Allowable Moment Rotation - 1470N · m
Position Repeatability - +/-0.05mm (R=250mm)
Hollow Shaft Diameter - 55mm
Allowable Welding Current - 500 A 60% Duty Cycle
Max Speed Rotation - 120°/s (20 r/min)
Operating Range Rotation - -3600°+3600° (with multi-rotation data reset function)
Allowable Torque - 1470N · m
Allowable Moment Rotation - 6125N · m
Position Repeatability - +/-0.05mm (R=250mm)
Hollow Shaft Diameter - 75mm
Allowable Welding Current - 500 A 60% Duty Cycle
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Payload (kg) |
250 - 250
|
| Number of axes |
single-axis
|
| Orientation |
rotary
|
| Other characteristics |
precision
|
| Product applications |
for robots
|
| Technology |
analog
|
| Type |
manual
|
