Details :

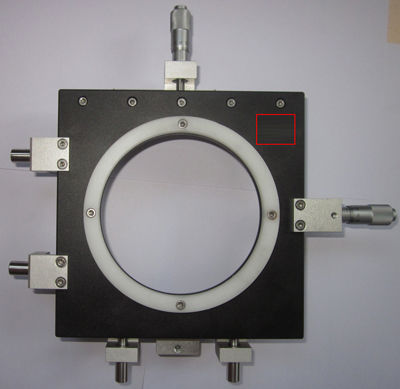

XY Lens Positioner, 100 mm Diameter
The LH100-XY Two Axis Lens Positioner is for the application of X and Y directions of precision positioning for planoconvex lens with 100 mm in diameter and 2.5 mm of edge thickness. (or if your need this XY lens holder with any other thickness of lens edge, please let us know). The precise micrometer heads drive the moving plate and provide 10 μm resolution of the motion.
The design of XY Dovetail Mechanism ensures smooth motion and long-terms of stability with relying on grease. The metric M6 threaded hole in the bottom of bracket allow for post mounting. The XY Lens Positioner will provide a 91 mm optical axis height.

Parameter Name	Parameter Value
Type	manual
Orientation	linear
Number of axes	XY
Technology	analog
Product applications	optical
Other characteristics	precision
