Use: positioning adjustable with handwheel on one axis with worm screw for frequent adjustments.

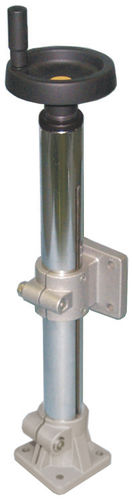

State of supply 1 column in nickel-plated steel (electrolytic nickel-plating), trapeze screw and lead nut in burnished steel, brass sliding bearings, 1 carriage in RAL 9006 grey aluminium, 1 aluminium pedestal, 1 handwheel in reinforced polyamide, galvanised steel nuts and bolts.

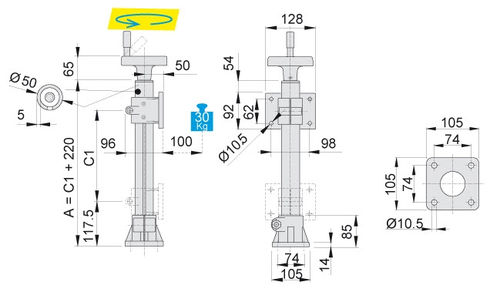

Characteristics: Tr20 worm screw, pitch 4 (1 handwheel turn = 4 linear mm).

Positioning accuracy: ±0.3 mm/300mm*.

Operation: STEP-BY-STEP (NO continuous operation).

Max. 120 rpm; max time: 1 (min; on/off ratio=1/10 (max 10%).

Millimetre scale marking p. .

WARNINGS

* the ACCURACY indicated is theoretical. Accuracy levels depend on the actual conditions of use and are affected by the accuracies of the kinematic chain - consisting of the handwheel/crank handle/revolution counter kit or any connection joints - and by the performance of the position control system (encoder, etc.).

Parameter Name	Parameter Value
Type	manual
Orientation	linear
Number of axes	1-axis
Technology	worm gear
