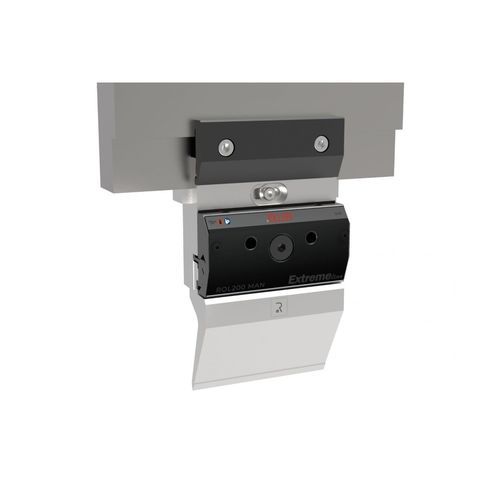

ROL200 represents the patented system created by Rolleri for a safe, vertical tool change of all type R1 tools. While the Extreme version may be adopted for all the standard intermediates (H100, H120, H150) and with 7 or 20 mm axes (Z1 and Z2), The Power version was developed with the aim of providing a single clamping system that could work with two different types of power supply.

With ROL200 Power we can control the clamp movement both pneumatically and hydraulically with the same system, as all the connection and the components are standardized in order to offer an easy, safe and economical solution.

This innovative clamping system can satisfy every need in terms of final application: it’s suitable for first equipment of new press brakes and also to renew the equipment of older machines.

UPPER SYSTEM

Rol200 patented system is compatible with all press brakes with Amada-Promecam type tang. No tool modification is necessary.

AUTOMATIC ALIGNMENT

All these clamping systems lift and seat punches automatically against the intermediate and guarantee their perfect alignment.

POWER SUPPLY

System available in pneumatic, hydraulic and manual version.

Parameter Name	Parameter Value
Type	hydraulic manual pneumatic
Other characteristics	automatic vertical
