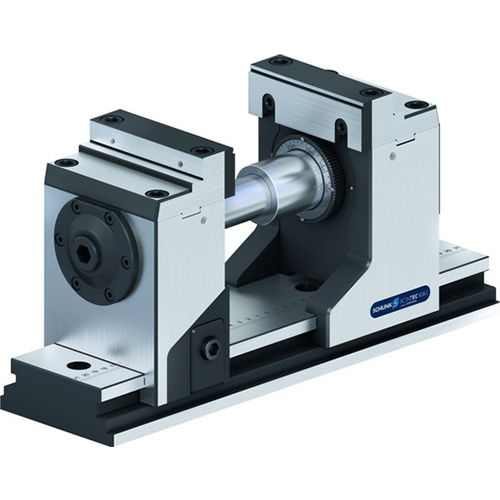

Manual clamping system KSX-C Series

Manual clamping system KSX-C Series

Manual clamping system KSX-C Series

About


Description
Power-assisted clamping system with adjustable clamping center and continuously variable clamping force adjustment

Field of application
5-axis machining centers

Advantages – Your benefits
Spindle on top
Prohibits a rear up of the jaws
Encapsulated force transmission box and telescopic spindle
No maintenance of force transmission unit required
Lever quick clamping
Easy, quick, and secure workpiece clamping
Continuous clamping force adjustment
Simple and fast adjustment of the clamping force, from 10 - 100%
Adjustable clamping center
Individually adjustable for new clamping tasks
Optimal accessibility
Allows the workpiece to be machined from five sides
Extendable clamping range
Enables the clamping of workpieces of various lengths
Standard jaw interface with comprehensive range of jaws
Optimal adjustment to new clamping tasks
Wide range of applications
Suitable for machining of finished and unfinished parts
Clamping by tension
No bending of the base body
VERO-S interface
Minimization of set-up times. Versatile range of combinations due to the VERO-S modular system



PARAMETERS

Parameter Name Parameter Value
Type
manual
Applications
  • workpiece
  • machining
Other characteristics
  • modular
  • adjustable
Clamping force
Max.: 40 kNMin.: 5 kN
