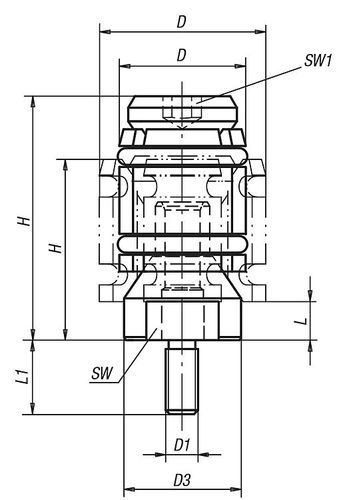

Centring clamps

Material:
Body steel.
Bushes carbon steel.

Version:
Black oxidised.

Note:

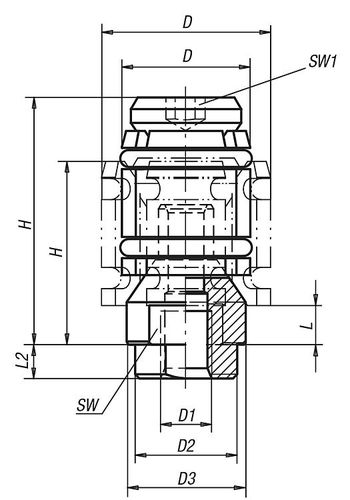

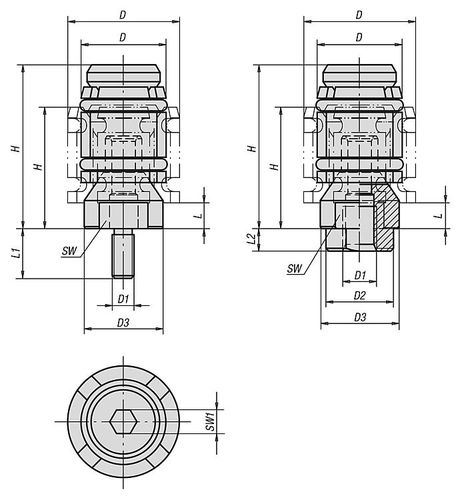

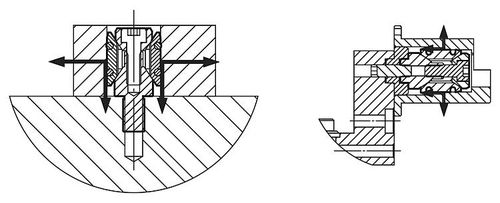

These centring clamps allow workpieces to be centred on and clamped in a bore. The clamps have a wide expansion range. The series covers a bore range of Ø12 to Ø30 mm. To increase the centring accuracy the clamps with internal thread have a centring spigot (D2) for a locating hole. These are also suitable for M6 grid systems (see application example).

Parameter Name	Parameter Value
Type	manual
Applications	machining workpiece
