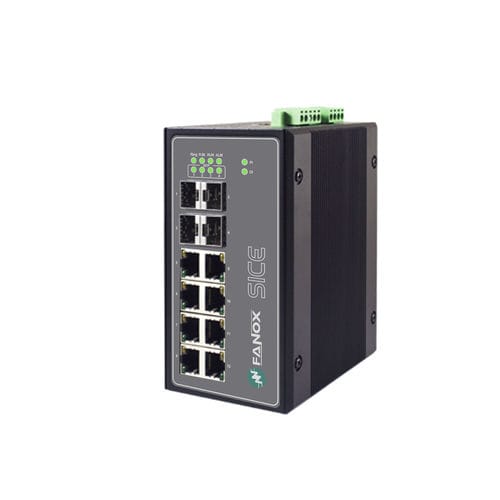

Fanox presents its new IEC61850-3 compliance highly reliable Gigabit Managed Switch to allow end customers to meet the most demanding needs in the market. The IEEE1588 Precision Time Protocol Capabilities allow the deployment of SICE in networks with stringent time Synchronization requirements.

It can act as an hw-assisted End-to-End transparent clock providing nanosecond-accurate correction-field packet-update and as an sw-assisted boundary clock.

The device equips up to 8 10/100/1000BASE-T(X) RJ-45 ports and up to 4 1000BASE-X SFP ports. With its high performance, it provides network redundancy self-recovery mechanisms is less than 20ms on the full load that enables the user to build a reliable network through a redundant ring topology. ERPS/STP/MSTP/RSTP/MRP (Client) and many other compatible rings are supported. With a Multifunctional web dashboard, its offers intelligent features such as Quality of service (QoS), Virtual LAN (VLAN), IGMP, IGMP Snooping, Port mirroring, and security.

The SIC-E is designed to be used in core power utilities. It provides dual redundant power inputs with Reverse Polarity Protection and two sets of relay that allow the user to build up a stand-alone fault alarm system. Its wide operating temperature of -40 to 85°C and DIN-Rail mounting capacities make it suitable to be used in remote substations where harsh environment and reliability is an issue.

Parameter Name	Parameter Value
Type	managed
Number of ports	8 ports, 12 ports
Network	gigabit
Other characteristics	redundant SFP+
Applications	industrial
