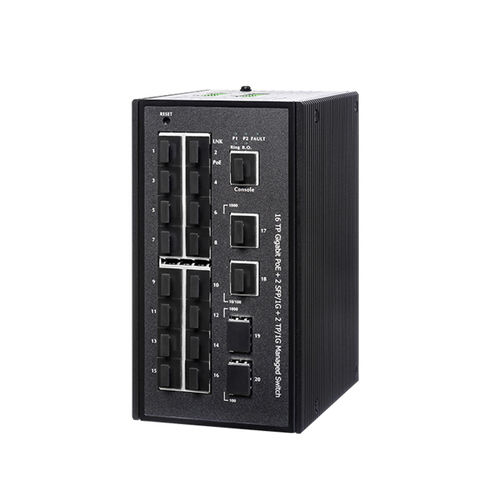

The NSGate NIS-3500-3426PGE is a Gigabit 20-port industrial PoE switch with 16 PoE ports and Enhanced G.8032 Ring

Technical Data:
- IEEE 802.3/802.3u/802.3ab/802.3x, 8K MAC, 4Mb buffer
- IEEE 802.3at/802.3af (PD Alive Check), 16 ports 20-30W
- IGMP snooping; STP, RSTP, MSTP, ERPS, BPDU Guard; LACP
- QoS, CoS, DSCP, VLAN (MAC/Protocol-based, PVE, 802.1Q tag, QinQ)
- Telnet, CLI, Web, SNMP, RADIUS, TACACS+, ACL, DHCP option 82
- 2 Digital Input (DI), 2 Digital Output (DO)
- Redundant Power Input 48-56VDC; Total PoE Budget: 320W
- Housing: IP30 Protection, DIN Rail or Wall mounting
- Operating Temp.: -40 ~ +75°C; Dimensions: 152x107x84mm

NIS-3500-3426PGE: 16 10/100/1000T PoE 30W + 2 SFP/1G + 2 TP/1G

Parameter Name	Parameter Value
Type	managed
Number of ports	20 ports
Mounting	DIN rail cabinet
Other characteristics	PoE redundant SFP+ RJ45 rugged IP30
Applications	industrial for harsh environments outdoor
