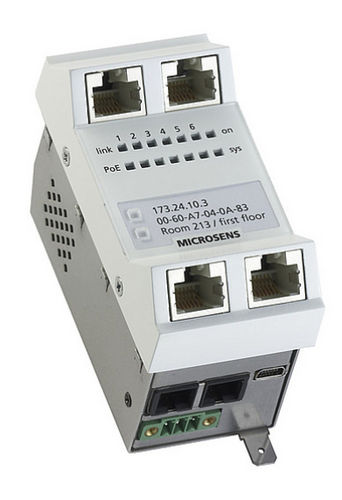

Gigabit Ethernet Micro Switch 6 Port PoE+ Generation 6+
High performance, full Gigabit Ethernet design
Energy efficiency by modern chipsets
RJ-45 downlink-port for hidden connection of Ethernet devices (10/100/1000T)
Power-over-Ethernet Plus up to 30W at all five RJ-45 ports
Comfortable administration (Web-, Telnet-, SNMP-interface and NMP-Software)
High security through VLANs, 802.1X, SSH, HTTPS, accounting etc.
Fast, tool-free mounting by snap-in installation
Optional SFP-uplink with dual speed 100/1000 Mbps
Optional Dual-Fiber-Link support by two SFP slots
microSD Memory-Card
Extension-Port for future use
The 6 port GBE Micro Switch Generation 6 constitutes an extension of the Gigabit Ethernet Micro Switch. In addition to the 1000Base-X fiber optic uplink, for linking to the central distributor, this switch has an additional RJ-45 downlink 10/100/1000Base-T. This additional connection is positioned at the rear of the switch and is also covered after the installation. This additional connection can, amongst other things, be used for cascading other Micro Switches in order to obtain additional connection capacities.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
managed
|
| Number of ports |
6 ports
|
| Network |
|
| Mounting |
DIN rail
|
| Other characteristics |
|
| Applications |
industrial
|
