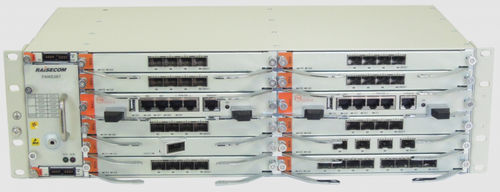

The iTN8600-E is a new intelligent all-service access and transmission platform designed for future-proof networks. It integrates OTN, MPLS-TP and SDH cross connection matrix and provides all types of services converged. It can be flexibly deployed by network operators where they need to offer Ethernet, MPLS-TP, fiber channels, OTN channels, SDH circuits or a mix of all. It will act as an ideal and complete solution for small and medium-sized PoP sites for addressing various customer needs.
Working against Raisecom RAX series devices, iTN8600 can act as a small aggregation device, grooming different services and bandwidth from customer premises while constituting ring or meshed network topologies. It is commonly deployed for service provider OTN edge aggregation, mobile backhauling and fronthauling, data center interconnect as well as high-capacity business leased-line connectivity. The product can be managed by a GUI-based NView NNM system to simplify configuration, service provisioning and performance monitoring in real-time.

Features

• Universal switching and flexible grooming for OTN, SDH, and packet services
• All service access capability, including E1, STM-1/4/16/64, OC-192, FE/GE, 10GE, OTU1/OTU2, CPRI, OBSAI, FC-1G/2G/4G/8G/10G, etc.
• Maximum DWDM 40λ x 10G/100G/200G Line capacity
• 240G packet switching capability
• EP-Line, EVP-Line, EP-Tree, EVP-Tree, EP-LAN, EVP-LAN
• MPLS-TP, static LSP, L2VPN and VPLS
• Support VC4/VC3/VC12 SDH cross connection
• G.8113.1 OAM, 802.1ag/Y.1731/SLA OAM and 802.3ah OAM
• Support ODUk OTN cross connection
• System management card and power supply module redundancy
• Support Auto Laser Shutdown (ALS) protection and Dying Gasp

Parameter Name	Parameter Value
Type	managed
Number of ports	8 ports, 4 ports
Network	fiber optic
Mounting	line
