About
To enable/disable the Ethernet ports, bistable relays that maintain their state even during power outages are used. Existing connections will not be affected accordingly.

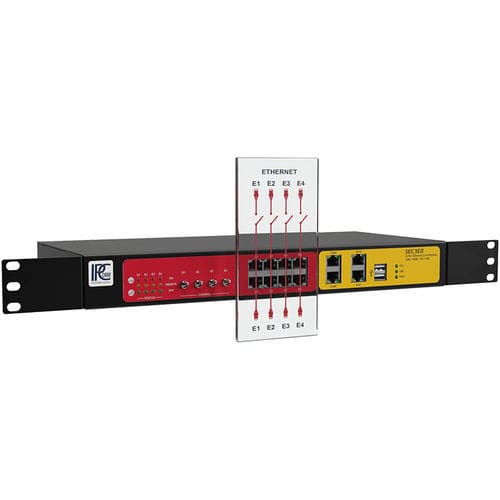

The applied SEC3ER hardware platform features a digital I/O module to control and capture digital states, and to physically disconnect up to four Ethernet port pairs. For this purpose, eight digital inputs and outputs are available, in addition to a variety of fieldbus protocols, telecontrol protocols, and established IT/cloud protocols, to monitor and control the connections of the 4-Port Ethernet Line Breaker.
The integrated web interface provides numerous configuration settings to automate the separable Ethernet connections. It includes powerful functions for data processing and provides a digital I/O interface that can be used to create complex switching scenarios.
• Support for 10M / 100M / 1G and 10G Ethernet
• Transparent data transmission
• Controlled bidirectional data exchange between systems
• Network segmentation
• Daisy chain of multiple SEC3ER
• Conduct-through Power over Ethernet (PoE)

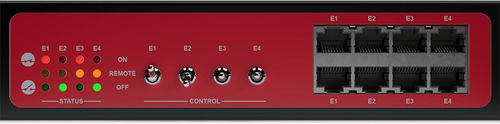

• Manually via 3-way switches
• Using the web configuration interface
• Digital inputs
• Protocol-based automation
• Internal time switch
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
managed
|
| Number of ports |
4 ports
|
| Mounting |
|
| Applications |
industrial
|
