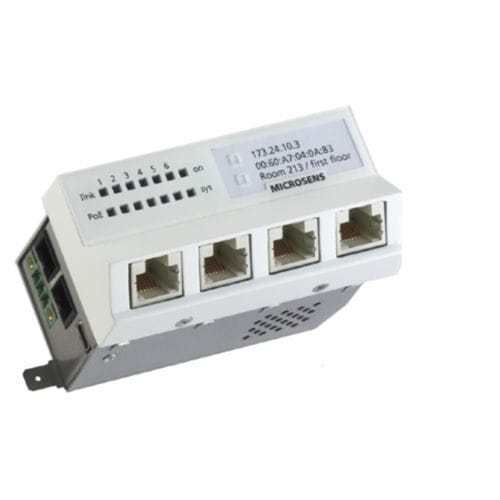

MC45x45 4Giga SC Fast[+TX] Multi Hor G6+

FTTO (Fiber To The Office) micro-switches, combined with a Tertiary RMS optical architecture, delivers optical fiber to the workstation. It does so using the usual connections preferred by users: RJ45 interfaces.

Heavy-duty versions allow operation from

Installation

The clip-on assembly requires no tools, making micro-switch installation quick and easy. The dimensions are compatible with all 45x45 format receptacles (trunking, floor boxes, etc.).

For the hardened versions, the microswitches are delivered with a DIN rail mounting kit

PoE option

Thanks to the Power-over-Ethernet function (PoE+ IEEE 802.3at and PoE IEEE 802.3af), terminals connected via the RJ45 ports can be supplied electricity simultaneously with data transmission. There is no need for an external power supply.

Administration

The micro-switches have an integrated administration interface accessible via a web browser (e.g. Internet Explorer, Firefox), http / https, Telnet / SSH, SNMP v1, v2c, v3 and the MICROSENS NMP platform.

Sample functions: VLANs, priority assignment (QoS), Power-over-Ethernet, PoE+, IPv6, 802.1X authentication, LLDP-Med, configuration option by CLI (Command Line Interface) and script file, etc.

Firmware and configurations can be stored on a Micro-SD card (not included). This new function makes microswitch management easy: preconfiguration, replacement, software updates, etc.

IEEE 802.3 standard 10/100/1000 Mbps 2 Gigabit Ethernet microswitch.

5 RJ45 ports 10/100/1000Base-T 4 in front (port 1 to 4) + 1 side port (port 6).

1 Gigabit Uplink port: fixed fiber, SFP, Compact SFP or 10/100/1000Base-TX (depending on model) (port 5).

Parameter Name	Parameter Value
Type	managed
Number of ports	4 ports
Network	gigabit Ethernet gigabit
Mounting	DIN rail standard fixed office clip-on integrated line
Other characteristics	PoE Power-over-Ethernet RJ45 compact combined
