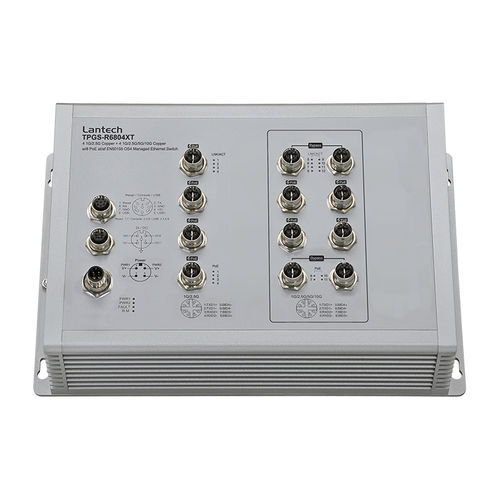

Lantech TPGS-R6804XT is a high performance OS4 Ethernet switch with 4 1G/2.5G + 8 1G/2.5G/5G/10G w/8 (incl.4 copper + 4 uplink 10GT copper) PoE 802.3af/at ports which provides advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports enhanced mode with easy configuration. The comprehensive QoS, advanced security including INGRESS ACL L2/L3, TACACS+, SSH v2/SSL and Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port are supported and also required in large network. It also supports10K Jumbo frames.

Up to 8(at) PoE at/af ports w/advanced PoE management
Compliant with 802.3af/at standard, the Lantech TPGS-R6804XT is able to feed each PoE port up to 30 Watt at each PoE port for various IP PD devices. Lantech TPGS-R6804XT supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD hangs then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE ports can be Enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI.

Miss-wiring avoidance, node failure protection, Loop protection
The TPGS-R6804XT also embedded several features for strong and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech TPGS-R6804XT being able to alert with the LED indicator and disable ring automatically. Node failure protection ensures the switches in a ring to survive after power breakout is back.

Parameter Name	Parameter Value
Type	managed
Number of ports	12 ports
Network	5G
Mounting	with housing wall-mount
Other characteristics	PoE USB EN50155
