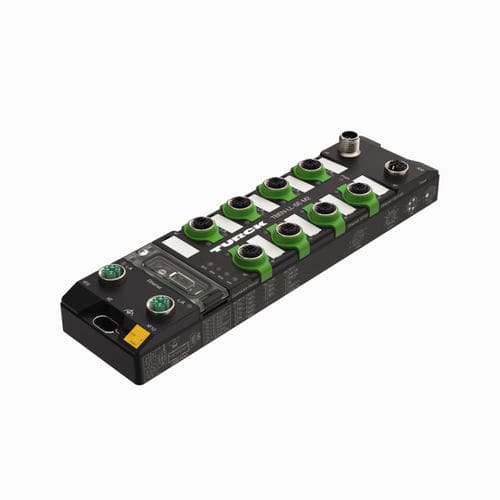

About
2 × M12, 8-pin, X-coded, 1 Gbps high-speed backbone
8 × M12, 4-pin, D-coded, 100 Mbps
Glass fiber reinforced housing
Shock and vibration tested
Fully potted module electronics
Protection classes IP65, IP67, IP69K
M12, L-coded male connector for power supply
Galvanically isolated voltage groups
ATEX Zone 2/22
Web-based management
Firewall
Configurable LAN/WAN zones
NAT routing
VLAN according to IEEE 802.1q
Prioritization according to IEEE 802.1p
DHCP server/client
Port-based IP address assignment
IGMP (snooping/querier)
Media redundancy RSTP
HTTP, HTTPS, LLDP, NTP, SNMP V1–V3
Port mirroring
Country of origin - DE
Weight - 564 g
Technical Data
Transmission rate Ethernet - 10/100/1000 Mbps
Number of Ethernet ports - 10 ports
Connection technology Ethernet - 2 × M12, 8-pin, X-coded, 8 × M12, 4-pin, D-coded
Ambient temperature - -40…+70 °C
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
managed
|
| Number of ports |
8 ports
|
| Other characteristics |
|
