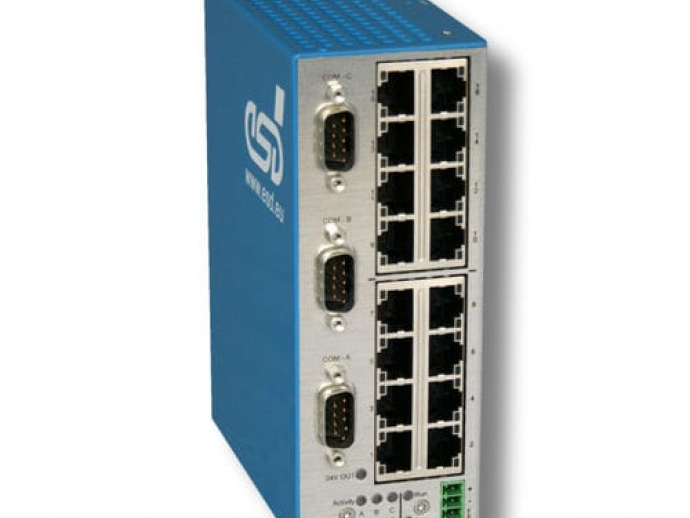

Netintegrator with COM-Server and Ethernet Switch
• 16 Ethernet ports via RJ45 sockets, 10BASE-T/100BASE-TX/1000BASE-T
• Manageable switch architecture
• 3 Serial COM ports via DSUB9 which can be set up as virtual ports on the PC and
configured as RS-232, RS-422 or RS-485 interfaces
• COM-Server with driver software for Windows® 7 and Windows 10
• Optional power supply for external device (via COM port connector)
• ARM® Cortex®-A8 microcontroller
• Web-based configuration and services
• VLAN support
• SNMP statistics
• DHCP client or fixed IP

DIN Rail Mounted Ethernet Switch
• Designed for DIN-EN carrier rail mounting (TS 35)
• Robust metal housing
• All interfaces accessible via front panel

Easy-to use Configuration Tools
• Windows® based configuration tool for serial interfaces
• Integrated web server for switch configuration and management

Customization on Request
• CAN interface
• Router/Firewall functions

Parameter Name	Parameter Value
Type	managed
Number of ports	16 ports, 10/100BaseT(X)
Network	serial
Mounting	DIN rail mounted fixed integrated
Other characteristics	RJ45 RS-232
Applications	industrial
