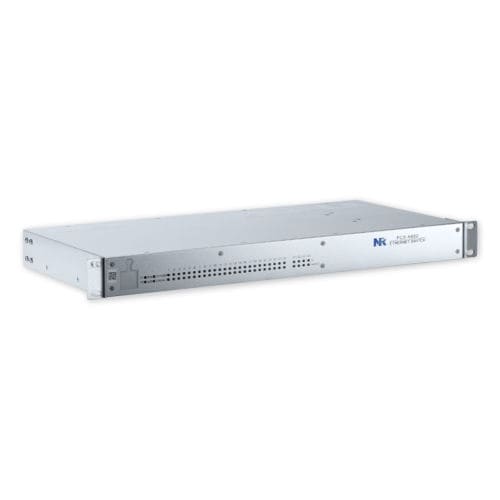

The PCS-9882 series managed Ethernet switches are designed for severe environments. It supports high data transmission rate to meet the increasing requirements in substation automation system (SAS), networked control system (NCS), distributed control systems (DCS), industrial system, etc.

• 10/100Mbps self-adaptive electrical Ethernet ports
• These ports are compatible with the 10BASE-T/100BASE-TX standard and are self-adaptive for crossover and straight-through network cable. MDI/MDIX automatic identification is supported.
• 10/100/1000Mbps self-adaptive electrical Ethernet ports
• These ports are compatible with the 10BASE-T/100BASE-TX/100BASE-T standard and are self-adaptive for crossover and straight-through network cable. MDI/MDIX automatic identification is supported.
• 100Mbps fiber port adopting SFP socket
• The SFP transceiver complying with IEEE 802.3 100BASE-FX standard can be hot plugged.
• 10/100/1000Mbps fiber port adopting SFP socket
• The SFP transceiver complying with IEEE 802.3 1000BASE-SX (1.25GBd) standard can be hot plugged.
• The switching mode is non-blocking store and forward.
• Support of IEEE 802.3x flow control.

Parameter Name	Parameter Value
Type	managed
Mounting	rack-mount
Other characteristics	SFP+
Applications	industrial
