About

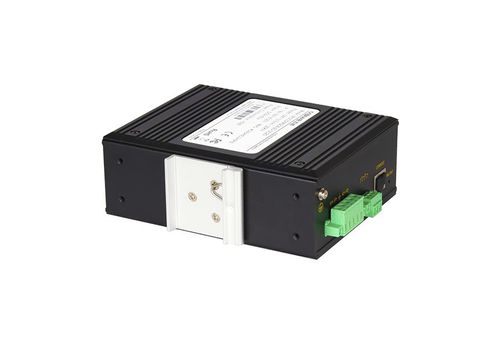

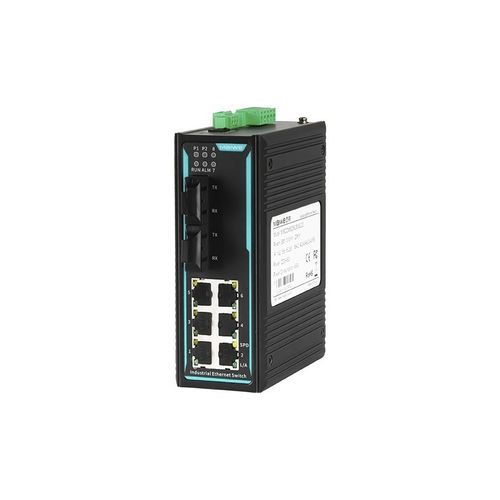

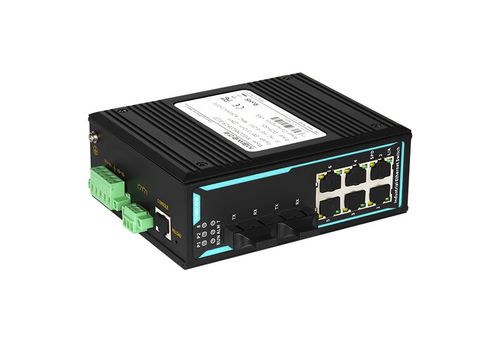

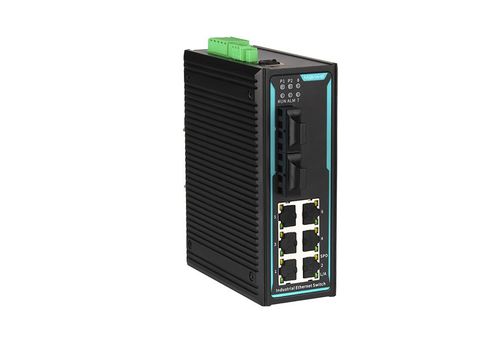

MISCOM6208 managed din-rail industrial Ethernet switch is designed and developed for industrial high-speed communication network applications. It provides a high-end industrial Ethernet communication solution for flexible industrial applications, making industrial communications smoother, more reliable and faster, meeting the needs of customers for innovative value-added applications. MISCOM6208 can be operated at wide temperatures range from -40 to 85°C, and its IP40 casing house satisfiesany harsh industrial environment.
eatures and Benefits
-8x10/100Base ports (port configuration see Ordering Information)
-Support MW-Ring with the recovery time<20ms
-Support real-time monitoring of broadcast storm control/rate limit
-Support static multicast/dynamic IGMP snooping/multicast traffic filtering
-Support port VLAN/IEEE 802.1q VLAN/QoS/port aggregation/port mirroring/IEEE802.1p/ToS DiffServe
-Support syslog and flow statistics
-Support industrial grade dual power input backup
-Support power-down status relay alarm output
-Industrial grade wide temperature/fanless design
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
managed
|
| Number of ports |
8 ports, 10/100BaseT(X)
|
| Network |
layer 2
|
| Mounting |
DIN rail
|
| Other characteristics |
IP40
|
| Applications |
industrial
|
