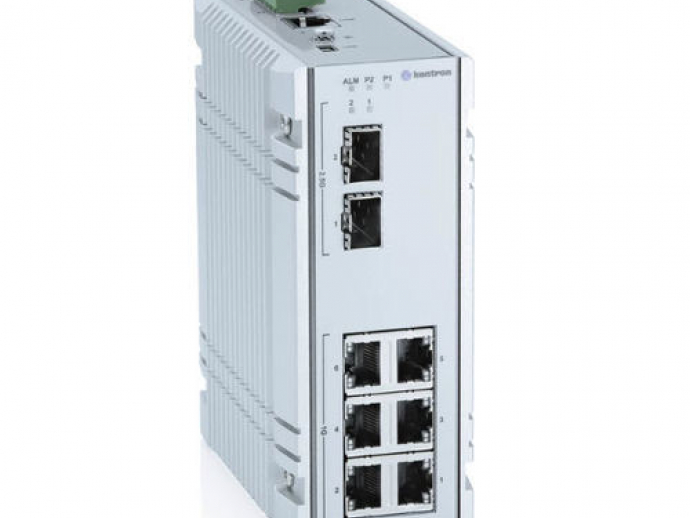

Managed ethernet switch KSwitch D10 MMT series

Managed ethernet switch KSwitch D10 MMT series

Managed ethernet switch KSwitch D10 MMT series

About


IEEE 802.1 TSN-compliant, managed Layer 2 Ethernet Switch
6x 1000/100/10Base-T Gigabit Ethernet
2x 2500/1000/100/10Base-T or 2x SFP+ ports for 2.5G fiber
Industrial grade, highly reliable and long-term available

Modern automation solutions for successful Industry 4.0 and IoT applications require high-performance real-time communications. Kontron's new KSwitch D10 MMT family is suitable for Fast- and Gigabit networks and is specifically designed for use in industrial environments. In addition to a compact design, the switches offer the possibility to interconnect machines, controllers and other components in a future-oriented way based on Time Sensitive Network Ethernet (IEEE 802.1 TSN).

All TSN standards, such as IEEE 802.1AS, 802.1Qci, 802.1Qav, 802.1Qbv, 802.1Qbu/3br and 802.1CB, as well as IEEE1588 v2 are supported.

The implemented management allows to structure Quality of Service, VLANs and IGMP-functions in industrial networks and to program the TSN network. Optionally, a Netconf implementation for TSN network functions is available.

All variants of the KSwitch portfolio can be flexibly combined with each other, making it easy to build a future-oriented TSN or standard Ethernet automation solution. Thanks to state-of-the-art technology, the switches operate reliably and at high performance while reducing power consumption. Further cost savings result from the use of standardized RJ45 as well as optional SFP (Small Formfactor Pluggable) slots. SFPs are available as modular, optical or electrical transceivers for fiber optics or "direct attach copper" and can be used flexibly and scalably depending on the application.



PARAMETERS

Parameter Name Parameter Value
Type
managed
Number of ports
8 ports
Network
  • gigabit
  • layer 2
Mounting
DIN rail
Other characteristics
  • RJ45
  • SFP+
  • compact
  • modular
  • combined
Applications
  • industrial
  • IoT
