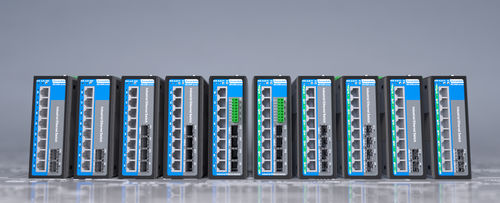

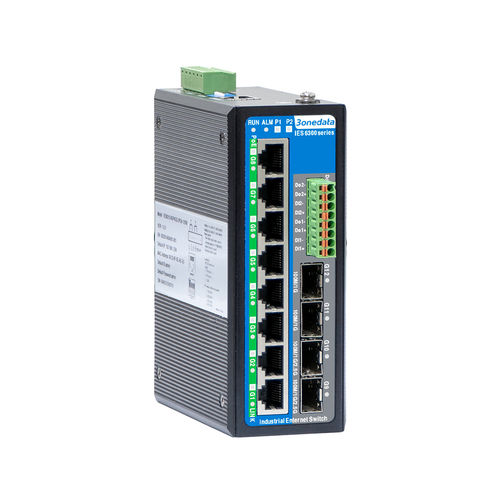

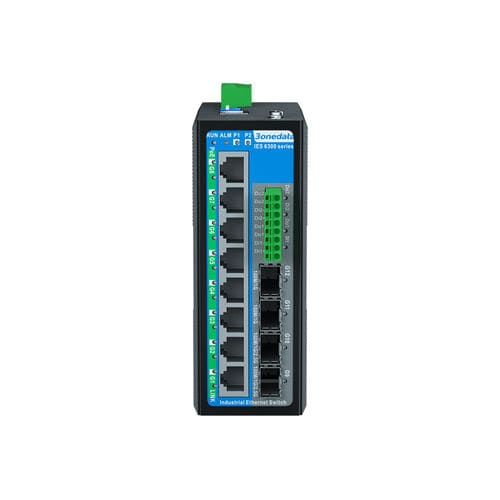

IES6300 Series

10/12-Port Layer 2 Managed Industrial Gigabit Ethernet Switch(Optional PoE or I/O)

-Support 2 2.5G SFP slots, 2 Gigabit SFP slots (optional), 8 Gigabit copper ports (optional PoE), 2 DI and 2 DO (optional)
-Adopt patented Ring technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
-Support 4 optional power supplies: 24VDC PoE, 48VDC PoE, 12~48VDC and 220VAC/DC
-The maximum PoE power consumption of 24VDC products is 120W, and the maximum PoE power consumption of 48VDC products is 240W
-Support -40~75℃ wide operating temperature range

3onedata's IES6300 series switches provide 2.5G high-bandwidth uplink ports with high performance and enhanced reliability, enabling field engineers to easily connect various bandwidth-demanding devices and expand reliable networks.

Parameter Name	Parameter Value
Type	managed
Number of ports	10 ports, 12 ports
Network	gigabit layer 2 fiber optic serial
Mounting	DIN rail wall-mount
Other characteristics	redundant RJ45 fast SFP+ PoE ultra-rugged high-power IP40
Applications	industrial for harsh environments outdoor traffic management for the energy sector for the petrochemical industry IoT
