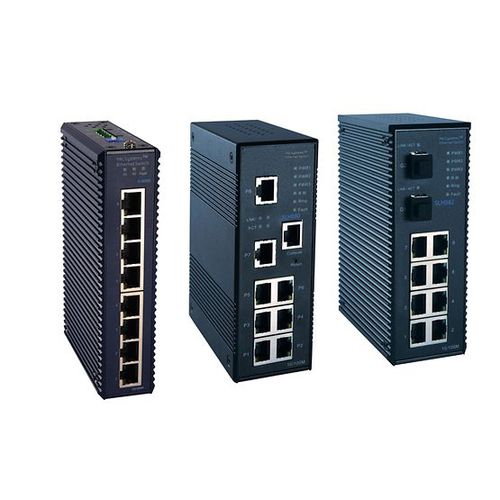

Ethernet switches designed for plant process areas must work in harsh environments subject to temperature extremes, humidity, and vibration. By replacing proprietary networks with an Ethernet LAN and PACSystems Ethernet switches, industrial companies can improve network reliability and simplify deployment.

Features

-Extended temperature range. Designed to perform in harsh environments
-Compact design. Reduced panel size and installation cost.
-Redundant power inputs to help ensure system uptime
-Fast network recovery technology. Rapid (<10ms) recovery rate protects mission critical data from network malfunctions
-Support Layer 3 Routing, Static Routing, RIP and VRRP function
-Web-based network configuration tool. Simplify the network configuration, maintenance, and deployment

Specifications

Managed
Yes

10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
24

Gigabit Combo Port with 10/100/1000Base-T(X) and 100/1000Base-X SFP ports
4

Ethernet Standard
IEEE 802.3: 10Base-TIEEE 802.3u: 100Base-TX and 100Base-FXIEEE 802.3z 1000Base-XIEEE 802.3x: flow controlIEEE 802.3ad: LACPIEEE 802.1D: STPIEEE 802.1p: COSIEEE 802.1Q: VLAN taggingIEEE 802.1W: RSTPIEEE 802.1s: MSTPIEEE 802.1X: AuthenticationIEEE 802.1AB: LLDP

Parameter Name	Parameter Value
Type	managed
Number of ports	28 ports
Network	gigabit Ethernet layer 3
Mounting	rack-mount
Other characteristics	redundant RJ45 fast SFP+ compact combo
Applications	industrial for harsh environments
