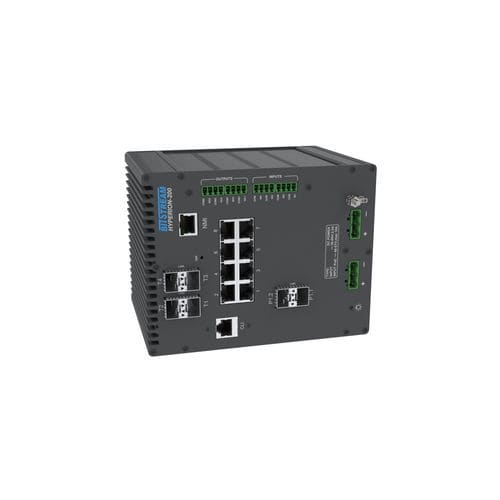

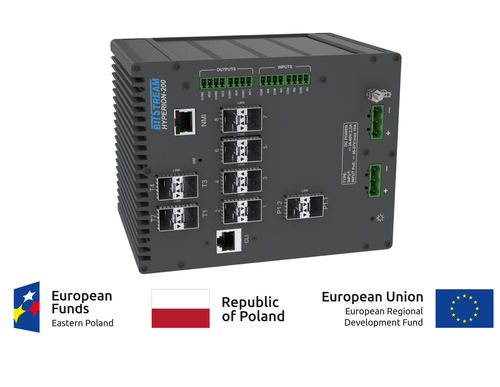

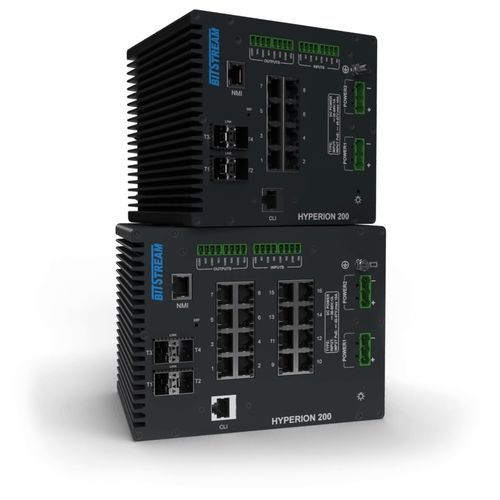

Managed industrial Ethernet switch with PTPv2 time synchronization server function and 4x 1 / 2.5 / 10Gbps and 8 / 16x 10M / 100M / 1G RJ45 PoE ÷ PoE ++ or 8x 100M / 1G SFP interfaces and Quadbox function with PRP support

Properties and Benefits

Family of industrial switches equipped with 4x SFP / SFP + 10 / 2.5 / 1Gbps slots and 8 / 16x 10M / 100M / 1Gbps RJ45 ports or 100M / 1Gbps SFP slots
Additional NMI UTP RJ45 10 / 100Mbit / s management port
Protocol support: STP, RSTP and MSTP
ITU-T G.8032 ERPS support, connection reconfiguration in <20ms, up to 64 rings simultaneously
Transmission security using IEEE 802.1ae MACsec # - encryption and data integrity with a 128-bit AES key on each UTP port
PRP (IEC 62439-3 Clause 4) support on all ports or optional Quadbox function
HSR (IEC 62439-3 Clause 5) security support on dedicated ports
Standard IEEE 1588-2008v.2 (PTPv2) : precise time synchronization protocol, hardware time stamping with profile 1588
Energy saving with Energy Efficient Ethernet (EEE)
Support for the PROFINET Conformance Class A protocol
Ethernet OAM support (Link OAM and Service OAM)
Standard secondary overvoltage protection in UTP modules on RJ-45 ports, ITU-T K.44 4kV 10 / 700us only in the transmission path
DDMI - SFP modules monitoring function
Equipped as standard with I / O functions: 4 'cc' input and 2 outputs interface for monitoring, alarm and control purposes
Management of IPv4, IPv6, Web, telnet, SSH and console, SNMP v1,2,3
Access security SNMPv3, HTTPS, SSH and IEEE802.1x, Radius, Tacacs + - AAA

Parameter Name	Parameter Value
Type	managed
Number of ports	12 ports, 20 ports
Network	layer 2 gigabit Ethernet fiber optic ProfiNet
Mounting	DIN rail wall-mount rackmount
Other characteristics	RJ45 redundant PoE fast SFP+ PTP HSR/PRP IP30
Applications	industrial for harsh environments for the energy sector for military applications
