- Complies with EN50155
- 8 port M12 D-coded 10/100Mbps PoE ports
- Power input EKI-9510E-MPH: 72/96/110 VDC EKI-9510E-MPL: 24/48 VDC
- X-Ring Pro supports rapid and predictable convergence
- IEEE 802.3at PoE+ to supply 30W power
- IEEE 802.3af PoE to supply 15.4 power
- Provides M12 connector with IP40 protection
- Operating Temperature: -40 ~ 70°C

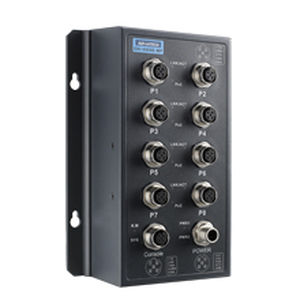

EKI-9508E M12 Managed Ethernet Switch is designed for railway applications, including rolling stock and wayside installations. EKI-9508E switch uses M12 connectors to ensure tight, robust connections, and to guarantee reliable operation against environmental disturbances, such as vibration and shock. It provides 8 Fast Ethernet M12 D-code ports with 8 IEEE 802.3at/af PoE ports. The PoE /PoE switch is classified as power source equipment (PSE) and provides up to 100 watts PoE power budget, and can be used for IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.

Parameter Name	Parameter Value
Type	managed
Number of ports	8 ports
Mounting	wall
Other characteristics	PoE fast IP40
Applications	for railway applications
