Having a reliable network switch on any network is a key component to the system stability and reliability.

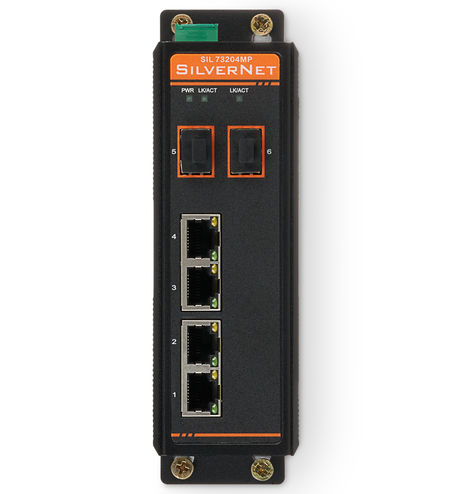

The SIL 73204MP is a reliable, high performance, high specification and cost effective managed industrial Gigabit PoE+ Managed Switch with four 10/100/1000Mbps RJ45 ports with PoE+ (30w) capabilities and two 100/1000Mbps SFP (fiber) uplink ports. It can be installed by DIN-rail or wall-mounted, allowing users greater flexibility.

The SIL 73204MP Industrial Gigabit PoE+ Managed Switch is ideal for extending Ethernet over distance via Fibre daisy-chain, whilst eliminating the need for individual power supplies for IP video cameras and wireless access points. The switch has an extended temperature range to enable it to cope with unconditioned outdoor cabinets and industrial environments.

Fully compliant with IEEE802.3af/at standard, providing Power-over- Ethernet over twisted pair cables and comes with Dual Gigabit SFP Slot built in.


IEEE803.af/at compliant PoE+
RJ45 supports auto MDI/MDI-X function
Auto negotiation speed, half/full-duplex
Store and forward
Reverse polarity protection
Resettable fuse to protect against overcurrent
IP-40 protection
EFT protection for power line
Ethernet ESD protection
DIN rail and Wall mounted installation

Parameter Name	Parameter Value
Type	managed
Number of ports	8 ports, 16 ports, 24 ports, 4 ports
Network	gigabit
Mounting	DIN rail wall-mounted
Other characteristics	RJ45
Applications	industrial
