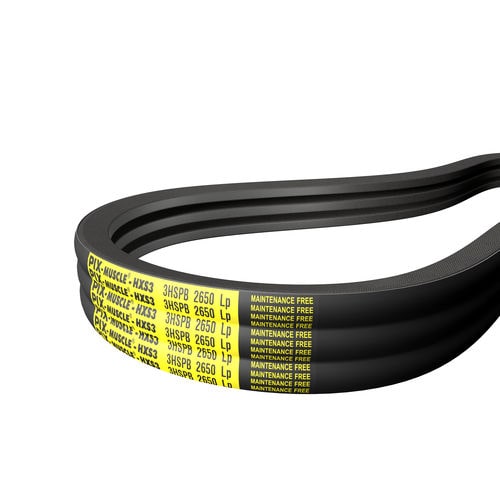

Maintenance-free power transmission belt PIX-Muscle ®-HXS3

Maintenance-free power transmission belt PIX-Muscle ®-HXS3

Maintenance-free power transmission belt PIX-Muscle ®-HXS3

About


Features
Superior power transmission capacity up to 60% more than the standard single Belts
Specially engineered cord for maintenance-free operation
Superior compound design for high thermal resistance and extended service life
Top curvature provides superior adhesion and accelerate heat dissipation rate
Controlled radial and lateral run-out facilitates smooth operation
Anti-static oil and heat resistance
REACH & RoHS compliant, provides an eco-friendly system
Temperature range: -25°C to +100°C


Constructional Details
High wear resistant outer jacketing for excellent grip and strength
Specially treated premium cord for negligible elongation, best suited for maintenance-free operation
Special fibre loaded compound for high power transmission and extended temperature resistance



PARAMETERS

Parameter Name Parameter Value
Type
  • ribbed
  • V
Material
rubber
Product applications
  • for heavy-duty applications
  • for generator sets
  • for pumps
  • for food industry machinery
  • for conveyor rollers
  • for heat exchangers
  • aircraft engine
  • furnace
  • power plant
  • for hot rolling mills
Sector
industrial, for the textile industry, for the automotive industry, for the food industry, for the medical industry
Other characteristics
  • anti-static
  • high-performance
  • high-power
  • for heavy loads
  • wrapped
  • high wear resistance
  • maintenance-free
  • banded
  • oil-resistant
  • heat-resistant
  • high temperature-resistant
Length (mm)
889 - 23629
Width (mm)
10 - 25.4
Thickness
Max.: 25 mm (0.98 in)Min.: 10 mm (0.39 in)
Pitch
Max.: 28.6 mm (1.13 in)Min.: 12 mm (0.47 in)
Temperature
Max.: 100 °C (212 °F)Min.: -25 °C (-13 °F)
