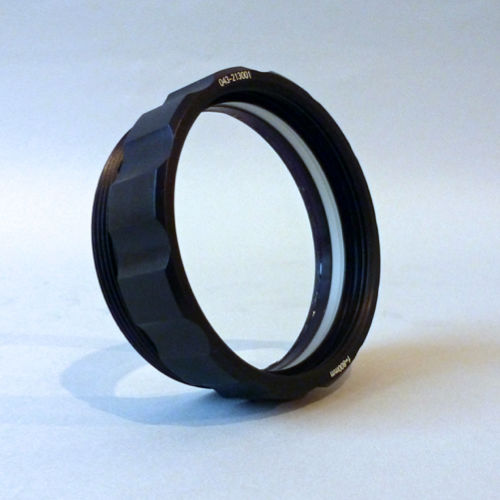

The Long working distance Objective M600 is especially designed for Leica stereo microscopes. Depending on the lens, you can extend your working distance up to 1200 mm.

With the appropriate adapters, the M600 can also be used with the Leica M50, M60, M80 and DMS.

An adapter for a ring light is also available.

Article number:
043-213001 WD 800mm Magnification 0.13x
043-213002 WD 500mm Magnification 0.2x
043-213003 WD 1000mm Magnification 0.1x
043-213005 WD 1200mm Magnification 0.08x
Working distance equates approx. to focal length

Objective thread M65 x 1.5 mm
Outer diameter 70mm
Height 12.5mm
Front faced inner thread M62 x 1.5mm
Ringlight adapter 043-300090 66mm
Adapter M50-M60-M80-DMS 10450243



PARAMETERS

Parameter Name Parameter Value
Type
macro
Technical applications
  • for microscopy
  • for long-distance measurements
Focal length
500 mm, 650 mm, 800 mm(19.69 in, 25.59 in, 31.5 in)
