MQL - the new performance class of MQL compliant clamping systems
LUBRICANT FROM THE VERY FIRST MOMENT – LOSS-FREE!

MQL AND CLAMPING TOOLS
Only the smallest amounts of lubrication are used in connection with MQL clamping tools - the application revolves around correct delivery of coolant to the cutting edge without any drop in pressure. The MQL compliant clamping tool plays a decisive role as part of the MQL delivery system.

FUTURE-PROOF TECHNOLOGY BY ACQUIRING THE HORKOS LICENSE
MQL stands out due to an enormously reduced consumption of lubricants in use compared to conventional wet machining.
There are two basic challenges for the clamping tool:
a) Optimised leak-proofing for a leak-free aerosol stream with no fine mist of aerosol droplets, no build up of moisture in the clamping chuck

b) Lubrication delivery from the very first moment for a flawless aerosol flow without any drop in pressure to the cutting edge

The new MQL generation from Bilz fully meets these requirements.

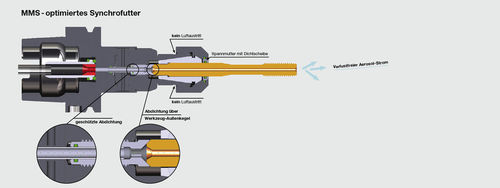

Optimised leak-proofing of our synchro chucks is unique on the market so far and a patent was applied for in January 2010.

Synchro chucks SCK - the next generation
PROCESS OPTIMIZATION BY INNOVATION
The minimum length compensation on pressure and retraction (+/-0,15 mm) as well as the radial damping compensate minimum deviations in position and discrepancies between the actual feed and the pitch of the tap. The flank pressure and therefore also the abrasion at the thread flanks is reduced considerably.

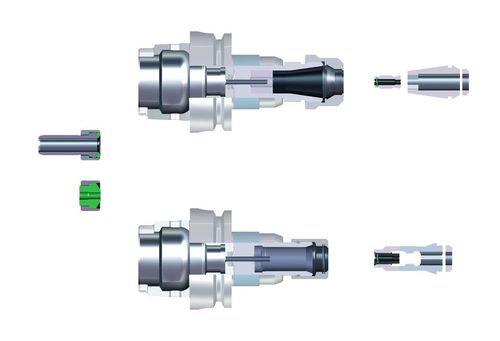

Combined solution MQL, IC + without coolant - one chuck is sufficient
Combined solution MQL, IC + without coolant - one chuck is sufficient Independent of cooling and

Parameter Name	Parameter Value
Applications	machining
