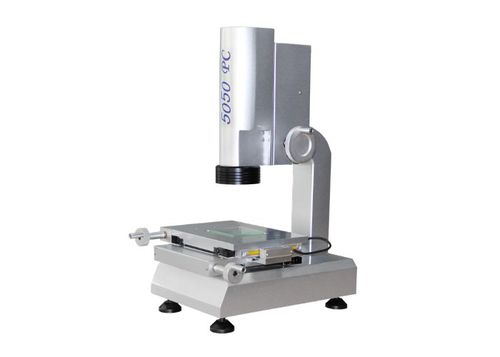

Smartscope Vision Measuring System Feature:
1. Advanced high-precision CCD imaging technology and advanced image processing technology combine perfectly to achieve special measurement requirements. With computer programming and control of optical lighting (top light, bottom light and ring light) technology, the surface of the workpiece is evenly illuminated and the measurement is improved. High precision and reliability.
2.The three axes are mechanically independent and do not interfere with each other, thus ensuring the high stability of the system.
3. The three-axis guideway adopts high-precision V-type and Taiwan HIWIN guide rails, which are the same as the body material, so it has good temperature stability, anti-realistic deformation ability, good steel, and minimal deformation of dynamic geometric error.
Smartscope Vision Measuring System Specification:
Model: 5050PC
Resolution（um）:1 or 0.5(Optional)
Measurement range(mm):50×50
Measurement range（um）:3.0+L/200
Lighting source:LED programmable control coaxial top light, ring light, bottom light, laser light
Max Load（kg）:5
Mechanical structure:Cross table, aluminum base + column
Optical probe:Standard MZ 0.7X-4.5X(freeze-frame,fixed times)
Camera:Standard
American TEO industrial camera
Motion control parts:The four axis motion control card, servo motor / hybrid patented technology, silent stepper motor.
Taiwan silver HIWIN guide and screw / patent design of toothless polished rod transmission structure.
Ambient environmental :Temperature：20±2℃
Temperature change：1℃/hour sample weight ≤15KG Lens≥3X
