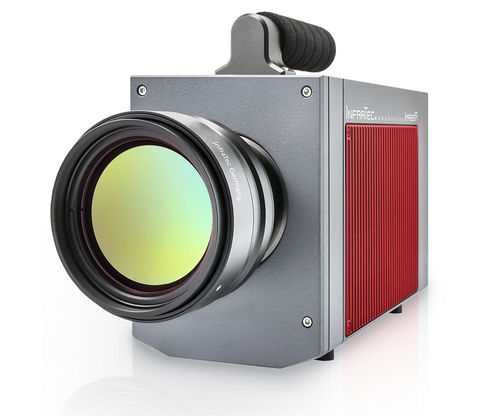

The ImageIR® 9500 is suitable for highly demanding applications in science and industry, object monitoring and microthermographic analysis of extremely small structures.

* Cooled FPA photon detector with (1,280 × 720) IR pixels
* Opto-mechanical MicroScan with (2,560 × 1,440) IR pixels
* Full-frame rate up to 120 Hz
* GigE Vision compatible
* Up to 1.5 kHz with (320 × 180) IR pixels

10 GigE Interface for a Strong Increase in Output
The 10 Gigabit Ethernet interface of the high-end camera series ImageIR®, opens this extremely fast transmission standard with a NIC specially developed by InfraTec. This works with optical or electrical transceiver modules that are easy to change and are called SFP+. For all models of the ImageIR® 9500 with their (1,280 × 720) IR pixel detectors this leads to a transfer rate in the full frame mode up to 120 Hz.

Users can transfer/store large quantities of data to a computer easily and reliably. Different 10 GigE fiber SFP+ transceivers allow transmission ranges of up to ten kilometers with the same low sensitivity to electromagnetic interference. A corresponding standard SFP ensures backward compatibility with the conventional GigE interface. This combination allows the ease of use of the cameras with the new 10 Gigabit Ethernet interface in existing systems - though at a reduced transmission rate.

Parameter Name	Parameter Value
Applications	machine vision for the automotive industry laboratory
Function	monitoring thermal imaging
Spectrum	infrared
Sensor	focal plane array
Interface	GigE Camera Link HDMI
Other characteristics	day/night high-sensitivity IP54 megapixel high-performance cooled
