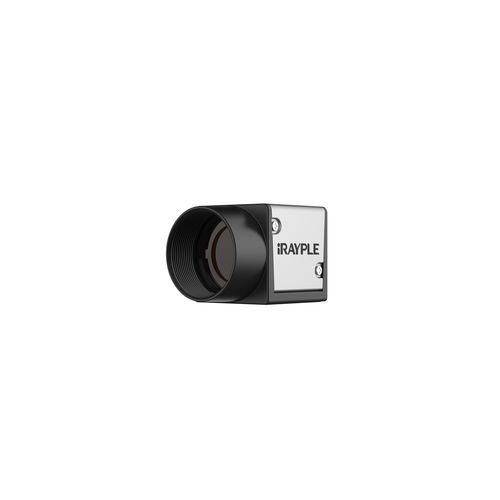

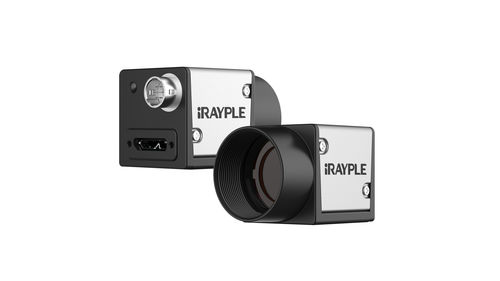

About
● USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface；
● Compact size of 29mmx29mmx29mm;
● 128MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness etc.;
● Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.；
● Support multiple image data formats output/ROI/Mirror, etc.；
● Compatible with USB3.0 Vision protocol and GenICam standard;
● Comform to CE, FCC, RoHS;
Sensor
RJ33J4CA0DT
Image Sensor
1/3"CCD
Resolution
1280 x 960
Frame Rate
33
Bit Depth
14
Mono/Color
Color
Pixel Size
3.75 x 3.75
Pixel
1.2MP
S/N Ratio
>38dB
WDR
63dB
Image Format
BayerRG8/10/10Packed，BayerGB8/10/10Packed
ROI
Support
Gain
1~32
White Balance
Automatic white balance
Gamma
From 0 to 4，support LUT
Exposure Time
1μS~1S
Trigger Mode
Software Trigger/Hardware Trigger/Free Run Mode
SPC
Support
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
machine vision
|
| Technology |
digital
|
| Function |
image processing
|
| Spectrum |
full-color, monochrome
|
| Sensor |
CMOS
|
| Interface |
USB 3.0
|
| Resolution level |
1280 x 960
|
| Resolution |
1.2 mpx
|
| Other characteristics |
|
