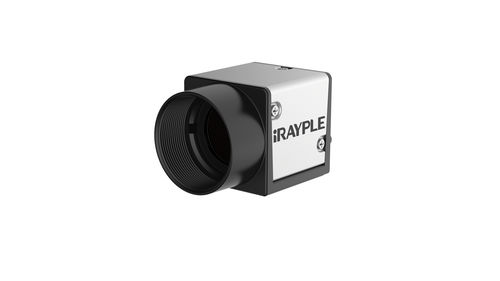

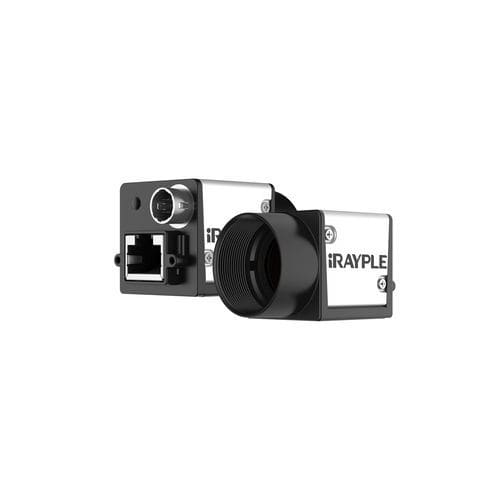

About

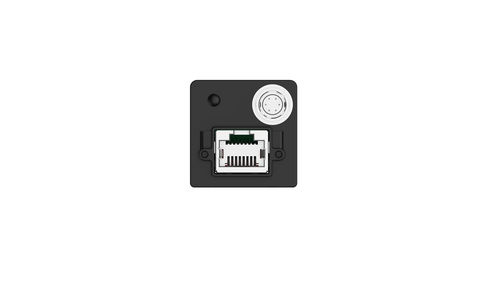

● Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m;
● 128MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.;
● Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.;
● Support multiple image data formats output/ROI/Mirror, etc.;
● Conform to GigE Vision V2.0 protocol and GenICam standard;
● DC 9V~24V wide voltage power supply;
● Conform to CE, FCC, RoHS;
Sensor
AR0135
Image Sensor
1/3"CMOS
Resolution
1280 x 960
Frame Rate
54
Bit Depth
12
Mono/Color
Mono
Pixel Size
3.75 x 3.75
Pixel
1.2MP
S/N Ratio
40.7dB
WDR
71.1dB
Image Format
Mono8/10/10Packed/12/12Packed
Binning
Support
ROI
Support
Gain
1~32
Gamma
From 0 to 4，support LUT
Exposure Time
18.7μS~1S
Trigger Mode
Software Trigger/Hardware Trigger/Free Run Mode
SPC
Support
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
machine vision
|
| Technology |
digital
|
| Function |
image processing
|
| Spectrum |
full-color, monochrome
|
| Sensor |
CMOS
|
| Interface |
GigE
|
| Resolution level |
1280 x 960
|
| Resolution |
1.2 mpx
|
| Other characteristics |
|
