About

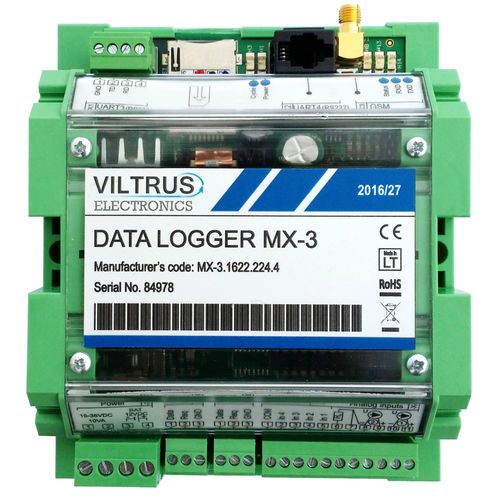

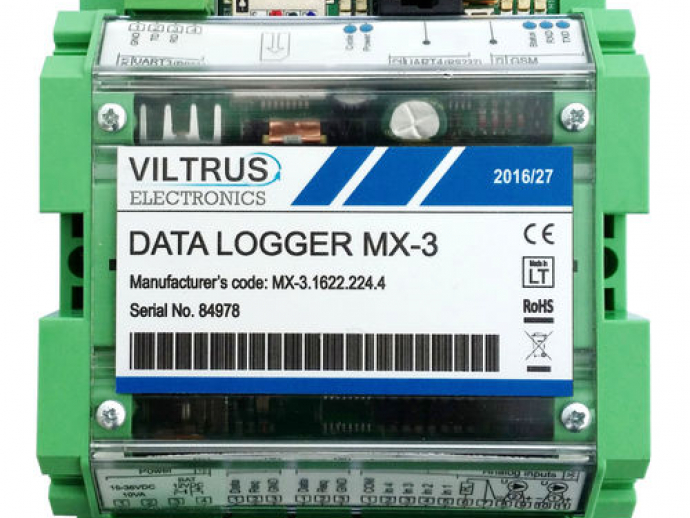

The MX-3 data logger allows reading of Modbus and M-Bus devices, analog inputs and register the data and sending it to remote users / server through Modbus GPRS modem. It also provides SMS sending services for alarm events. Data logger can read Kamstrup, Sensus, DIEHL, Danfoss, Itron, Landis & Gyr and other meters (like exotic meters / industrial meters). Also MX-3 can control and read other controllers like Danfoss ECL 300.

Technical Features

- Possibility to choose interfaces: M-Bus, GSM/GPRS, RS232, RS485, Data/Req, USB, Analog and Discrete input ports
- Reading data from any kind of meters (water, electricity, heat, gas, cooling ...) and controllers
- Supported protocols: Modbus RTU, Modbus TCP/IP, M-Bus, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:200 and transparent
- Independent data log with real time stamp (Real Time Clock)
- Remote communication and updates through GSM/GPRS
- Up to 4 Discrete inputs
- Up to 3 Analog inputs
- SMS sending for alarm events
- Additional special transparent protocol data transfer
- Galvanically isolated interfaces and power supply
- Batteries management. The remote monitoring devices can charge the battery and use it to power supply in the event of blackout



PARAMETERS

Parameter Name Parameter Value
Connector type
M-bus, Modbus
