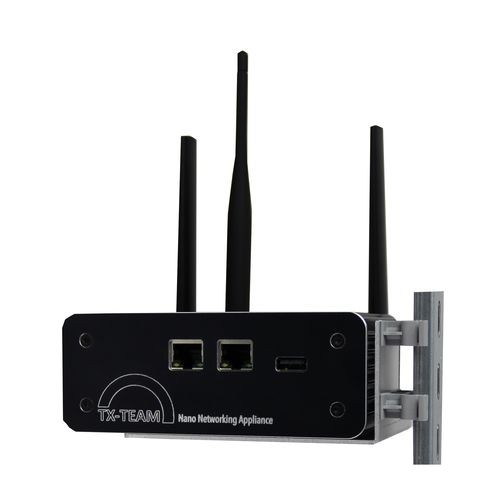

Very small, economical, fanless industrial LTE router for use as IIoT gateway, edge controller, M2M applications.

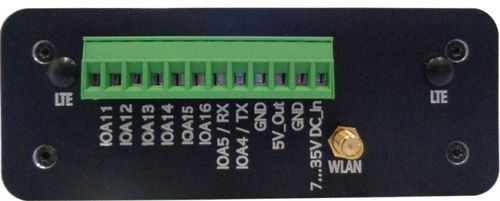

The LTE Nano Router is capable of collecting data via GPIOs (12pin PhoenixContact terminal), SPI, I²C or USB (applications), processing it via the integrated quad-core ARM processor (SoC) and forwarding it via (dual) LAN, LTE 4G or WLAN.

Features:

-LTE Router Ready to Use
-OpenWrt pre-installed
-Freely programmable GPIOs
-Quectel EC25 LTE module: Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
-DUAL LAN
- WLAN 802.11 b/g/n
- IP protection class 40
-Operating temperature -20°C .....70°C
-3 years warranty

Parameter Name	Parameter Value
Type	cellular data
Network	Ethernet 4G LAN LTE 4G LTE WAN EDGE WLAN OpenWrt USB
Mounting	DIN rail embedded wall-mount built-in office box rack-mount
Number of ports	3 port, 12 ports
Other characteristics	firewall with VPN mobile broadband OpenWrt Linux multi-port OpenWrt-compatible
Applications	network for IoT applications for remote access for wireless networks for mobile applications M2M industrial
