About

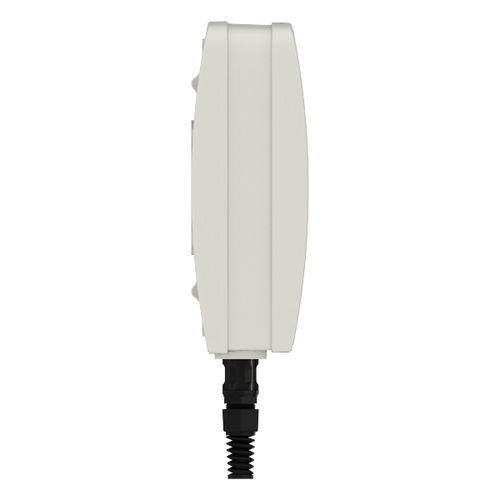

WiBOX PA M19-8X is designed mainly for mobile cellular systems 3G, 3.5G, 3.75G and especially 4G - LTE as an 8 dBi dual polarization client antenna (CPE) in X (slant) polarization. Its wide range of work permits to operate in the systems such as GSM, UMTS and LTE. It can be used as client antenna for point-to-point (PTP) or point-to-multipoint (PMP) or for hotspots in offices, halls and public areas. Due to an innovative antenna design with great parameters it enables to work in a wide range of frequencies for LTE systems: band 1, 2, 3, 4, 9, 10, 25, 29, 33, 34, 35 , 36, 37, 39. The system can operate indoor and outdoor (IP67). The antenna is integrated with the top quality WiBOX Medium. It comes with 2 x SMA connector.
Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

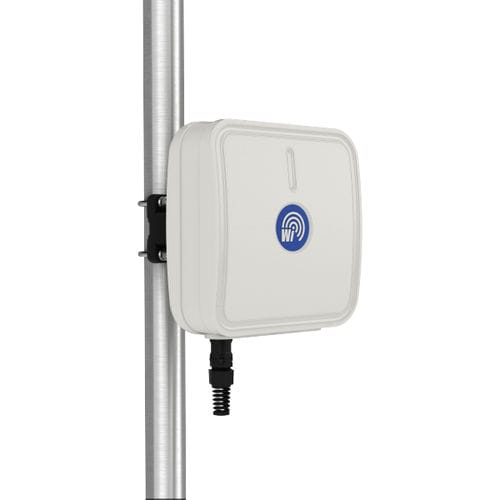

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.
WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.
WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are 4 additional holes for another antenna connectors.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Network |
|
| Type |
panel
|
| Other characteristics |
|
| Frequency (Hz) |
1700000000 - 2200000000
|
| Gain (dB) |
8 - 8
|
