About

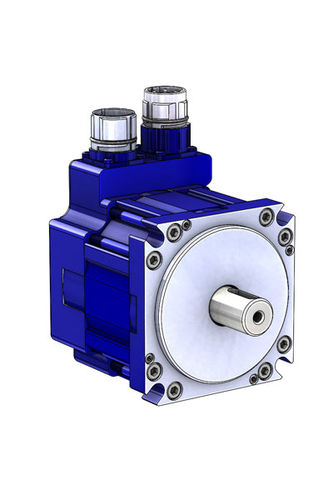

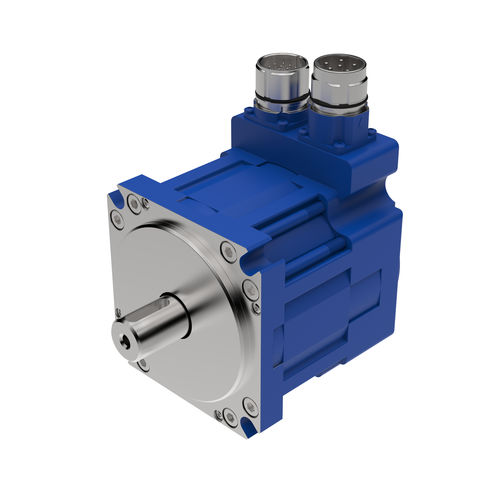

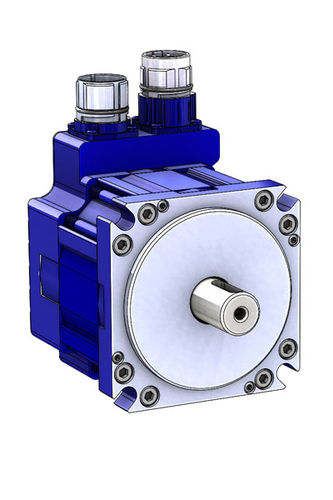

• Our HDD09N will shortly be available in a 48 V, low voltage version.
• The HDD 09N low voltage is built with the same technology as the traditional AC servomotor. However, it has a coarser winding to cope the higher current when controlled by a low voltage DC-driver. It can therefore be referred to as a DC servomotor.
• Rated speed 3000 rpm, rated torque 3.6 Nm at a rated current 40 A and the length of 87,3 mm.
• Weight is only 3,6 kg.
• Resolver, Heiperface, EnDat protocol and a number of drive compatible drive pinouts.
• The motors can be supplied with or without brake.
• IP 65 as a standard be can be ordered with IP 67.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Type |
synchronous
|
| Voltage (V) |
48 - 48
|
| Protection class |
|
| Applications |
for the automotive industry
|
| Other characteristics |
low-voltage
|
| Intensity (A) |
40 - 40
|
| Torque (Nm) |
3.6 - 3.6
|
| Rotational speed (rpm) |
3000 - 3000
|
